Width: 1.25 in
Height: 1.25 in
Length: 5.12 in
Weight: 4 lb
End Rod: REC-012M
Accuracy: ± 0.037%
Linearity: ± 0.03%
Materials: Stainless Steel
Force Type: Compression
Hysteresis: ± 0.02%
Wire Gauge: 22 AWG
Load Button: LBJ-012
Cable Length: 20 ft
Overload, Max: 200% FS
Repeatability: ± 0.01%

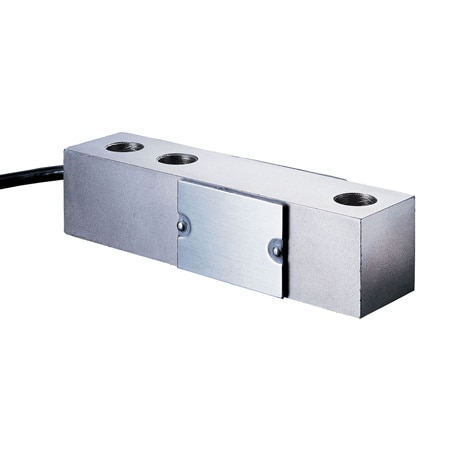

Load Cell Type: Bending Beam
Supply Voltage: 10 to 15 Vdc
Mounting Plates: MFP-1
Bridge Resistance: 350 Ω
Electrical Output: 3 mV/V
Calibration Option: NIST
Interchangeability: 0.0025
Load Cell Capacity: 1000 lbF
Zero/Balance Error: ± 1%
Thermal Span Effect: 0.0008% rdg/°F
Thermal Zero Effect: 0.0015% FS/°F
Electrical Connection: Cable
Full Scale Deflection: 0.013 in
Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Process Temperature, Max: 66 °C
Process Temperature, Min: -18 °C
Operating Temperature, Max: 66 °C
Operating Temperature, Min: -18 °C
