Width: 0.47 in
Height: 0.87 in
Length: 2.75 in
Accuracy: Class C3D
Approvals: OIML R60
Dead load: 0% FS
Linearity: ± 0.028%
Materials: Aluminum
Force Type: Compression
Cable Length: 1.5 ft
Overload, Max: 150% FS
Platform Size: 7.87 in x 7.87 in
Safe Overload: 120% FS

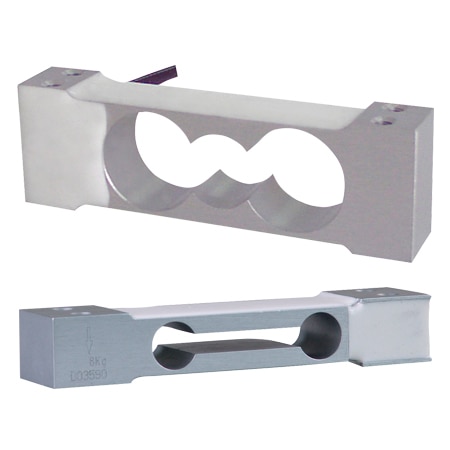

Load Cell Type: Bending Beam
Supply Voltage: 5 to 12 Vdc
Bolt Size/Torque: 3 mm
Input Resistance: 406 ± 6 Ω
Electrical Output: 1 mV/V
Enclosure Ratings: IP65
Output Resistance: 350 ± 3 Ω
Supply Power Note: 5 to 12 Vdc, 18 Vdc max
Load Cell Capacity: 1 kgf
Zero/Balance Error: ± 2%
Electrical Connection: Cable
Insulation Resistance: ≥ 5000 MΩ
Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Process Temperature, Max: 40 °C
Process Temperature, Min: -10 °C
Storage Temperature, Max: 70 °C
Storage Temperature, Min: -40 °C
Operating Temperature, Max: 65 °C
Operating Temperature, Min: -35 °C
Number of Load Cell Intervals (nLC): 2500
Ratio of Minimum LC Verification Interval (Y = Emax/vmin): 5000
