Width: 1.5 in
Height: 1.5 in
Length: 6.75 in
Weight: 4 lb
Approvals: FM/CSA
Linearity: ± 0.03%
Materials: 17-4 PH Stainless Steel, Stainless Steel
Force Type: Compression
Hysteresis: ± 0.02%
Cable Length: 0 ft
Overload, Max: 300% FS
Repeatability: ± 0.02%
Safe Overload: 150% FS

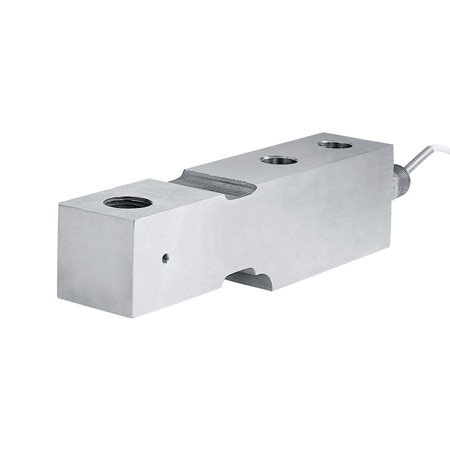

Load Cell Type: Bending Beam
Supply Voltage: 10 to 15 Vdc
Input Resistance: 360 Ω min
Mating Connector: MIL-26482-I 10-6S
Electrical Output: 3 mV/V
Output Resistance: 350 ± 10 Ω
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 5 POINT NIST
Interchangeability: 0.0025
Load Cell Capacity: 2000 lbF
Zero/Balance Error: ± 1%
5-Point Calibration: 0%, 50%, 100%, 50%, 0% (in Compression)
Thermal Span Effect: ± 0.0018% FSO/°C
Thermal Zero Effect: ± 0.0018% FSO/°C
Electrical Connection: MIL-26482-I 10-6P
Full Scale Deflection: 0.02 in
Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Process Temperature, Max: 71 °C
Process Temperature, Min: 16 °C
Operating Temperature, Max: 82 °C
Operating Temperature, Min: -34 °C
