Height: 2.5 in
Linearity: ± 0.1%
Materials: 17-4 PH Stainless Steel
Force Type: Compression
Hysteresis: ± 0.1%
Overload, Max: 300% FS
Repeatability: ± 0.05%
Safe Overload: 150% FS

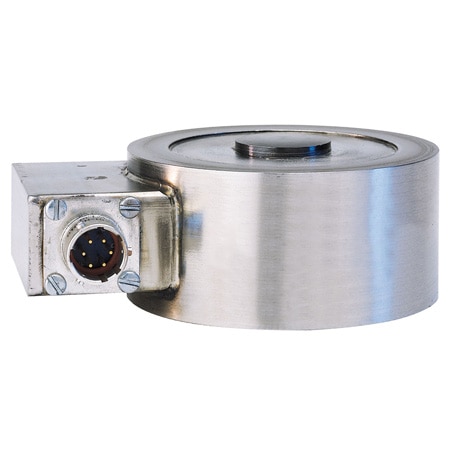

Load Cell Type: Pancake
Outer Diameter: 5 in
Supply Voltage: 10 Vdc
Mating Connector: MIL-26482-I 10-6S
Bridge Resistance: 350 ± 5 Ω
Electrical Output: 3 mV/V
Enclosure Ratings: IP65
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 5 POINT NIST
Interchangeability: 0.0025
Load Cell Capacity: 75000 lbF
Zero/Balance Error: ± 1%
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Thermal Span Effect: 0.006% FSO/°C
Thermal Zero Effect: 0.0045% FSO/°C
Electrical Connection: MIL-26482-I 10-6P
Full Scale Deflection: 0.003 in
Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Process Temperature, Max: 71 °C
Process Temperature, Min: 16 °C
Operating Temperature, Max: 107 °C
Operating Temperature, Min: -54 °C
Cable Assembly with Twist Lock Connector: CA-6PC24-3-015
