Width: 0.5 in
Height: 2.5 in
Length: 1.5 in
Weight: 1 lb
End Rod: REC-014M
Linearity: ± 0.03%
Materials: 17-4 PH Stainless Steel
Force Type: Tension
Hysteresis: ± 0.02%
Wire Gauge: 24 AWG
Load Button: LBC-014
Cable Length: 30 ft
Overload, Max: 300% FS
Repeatability: ± 0.01%
Safe Overload: 1.5

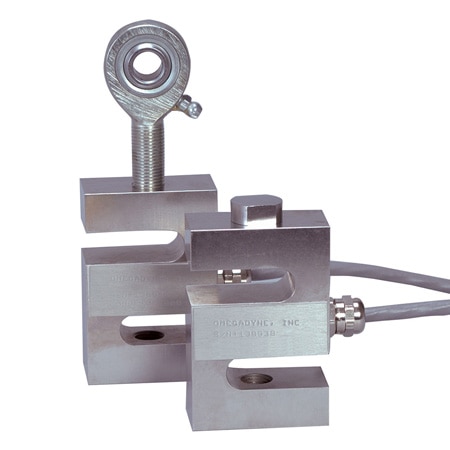

Load Cell Type: S-beam
Supply Voltage: 10 Vdc
Input Resistance: 350 ± 10 Ω
Electrical Output: 3 mV/V
Output Resistance: 350 ± 10 Ω
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 5 POINT NIST
Interchangeability: 0.0025
Load Cell Capacity: 100 lbF
Zero/Balance Error: ± 1%
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Thermal Span Effect: 0.002% FSO/°C
Thermal Zero Effect: 0.002% FSO/°C
Electrical Connection: Cable
Full Scale Deflection: 0.02 in
Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Process Temperature, Max: 71 °C
Process Temperature, Min: 17 °C
Operating Temperature, Max: 93 °C
Operating Temperature, Min: -40 °C
