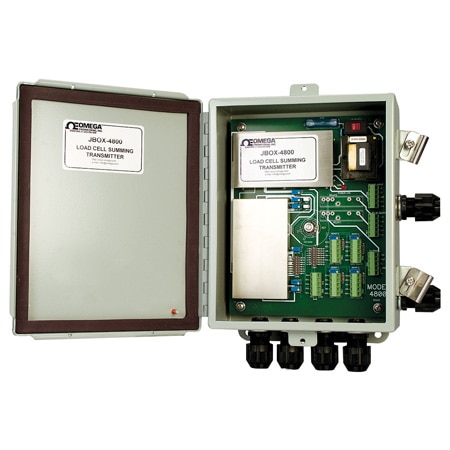

OMEGA JBOX-4800 ກະຕ່າລວມ/ຕົວສົ່ງອອກພ້ອມກັບຜົນລັບຂອງກະບວນການ (Voltage, 0 to 20 mA, 4 to 20 mA, 0 to 10 Vdc, 2 to 10 Vdc)
CMRR: 100 dB
Width: 229 mm
Height: 112 mm
Length: 318 mm
Weight: 4.7 kg
Accuracy: ± 0.1 %
Bandwidth: -3 dB @ 10 Hz
Isolation: Isolation (AC or DC, 3-Way): AC to Input or Output: 750 Vac DC to Input or Output: 300 Vdc/500 p
Linearity: ± 0.01
Input Type: Voltage
Input Noise: 20 mV p-p @ 100 kHz
Input Range: 5 to 50 mV
Output Noise: <1 mVrms, 120 Hz bandwidth
Supply Power: AC: 115V (90 to 130V), 230V (180 to 260V);DC: 11 to 30V, 8 W
Output Signal: Current, Voltage
Response Time: 35 ms
Tare Adjustment: -3 to 6.5 mV, 6.5 to 16 mV, 16 to 25 mV
Electrical Output: 0 to 20 mA, 4 to 20 mA, 0 to 10 Vdc, 2 to 10 Vdc
Enclosure Ratings: IP65, NEMA 4
Supply Power Type: AC/DC
Response Time Note: 35 ms (10 to 90%)
Common Mode Voltage: 5 Vdc
Loop Resistance, Max: 1000 Ω
Excitation Voltage Note: Exicitation Voltage Range: 5 to 10 Vdc Current Output: 120 mA max Line Regulation: <0.01% typical 0.002% Output Noise: <1 mVrms 120 Hz bandwidth
Temperature Coefficient: 0.0015%/°C;Total : 0.0025%/°C
