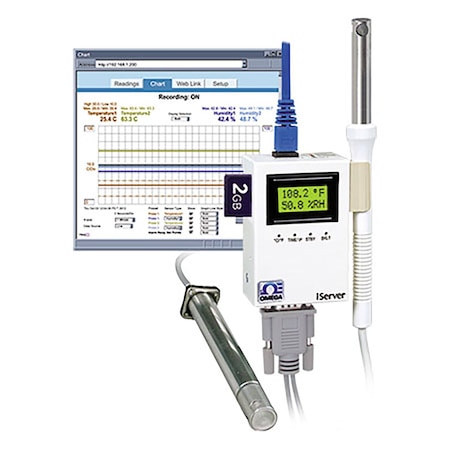

OMEGA ITHX-SD-5 ບັນທຶກແຜນສະແດງອຸນຫະພູມແລະຄວາມຊື່ນ (124 °C, 0 to 100% RH, Wall Bracket Mount)
Width: 2.93 in
Height: 1.44 in
Length: 3.56 in
Weight: 0.86 lb
Software: Compatible with Windows operating systems, Firmware upgrade from Ethernet OPC Server, iConnect: Configuration software for the Ethernet interface, iLog: Macro for automatic data logging in MS Exce
Approvals: CE, FCC-B
Materials: 316 Stainless Steel, Stainless Steel
Hysteresis: ± 1% RH
Input Type: External
Probe Type: Industrial Probe
Form factor: Wall Bracket Mount
Samples,Max: 85k Samples, Interval 1 sec
Battery life: Back-up Battery Life: up to 60 hr, with reading interval of 1 min
Cable Length: 10 ft
Display Note: 16 digits, 6mm (0.23”)
Display Type: N/A
Probe Length: 5 in
Relay Output: 1.5 A @ 30 Vdc
Accuracy Note: Temperature Sensor Accuracy: Industrial Probe: ± 0.5°C for 5° to 45°C, Up to ± 1.5°C for -40° to 5°C and 45° to 124°C, Relative Humidity Accuracy: ± 2.75% for 10 to 90%; ± 3% for 5 to 10% and 90 to 95%, ± 4% for 0 to 5% and 95 to 100%
Configuration: Internal Web UI
Logging Modes: Fixed interval
Non-Linearity: ± 3%
RH Resolution: 0.1%, 12 bit
Repeatability: ± 0.1%
Response Time: Temperature: 5 to 30 sec, RH: 8 sec
Certifications: NIST Traceable Calibration
Data Interface: Ethernet
Probe Diameter: 5 in
Supply Current: 0.5 A
Supply Voltage: 9 to 12 Vdc
Measurement Type: Relative Humidity, Temperature
Number of Relays: 2
Supply Power Type: DC/Battery
Data Interface Note: Ethernet : (RJ45) Fixed or auto negotiating 10/100BASE-T, AUTO MDI/MDIX Supported Protocols:TCP, UDP, SNMP, SMTP, NTP, ARP, ICMP, DHCP, DNS, HTTP, and Telnet
RH Measurement Range: 0 to 100% RH
Temperature Accuracy: ± 0.5 °C
Battery Size and Type: Alkaline 9V
Electrical Connection: Sub-D Male Miniature Connector
Cable Temperature, Max: 125 °C
Cable Temperature, Min: -40 °C
Number of Measurements: 2
Temperature Resolution: 0.1 °C, 14 bit
Storage Temperature, Max: 85 °C
Storage Temperature, Min: -40 °C
Temperature Repeatability: ± 0.1 °C
Operating Temperature Note: iServer Unit: 0 to 60°C Battery: -18 to 55°C ac Power Adapter: 0 to 40°C Industrial Cable: -40 to 125°C
Operating Temperature, Max: 60 °C
Operating Temperature, Min: 0 °C
Relative Humidity Accuracy: ± 2.75% RH
Temperature Measurement, Max: 124 °C
Temperature Measurement, Min: -40 °C
Battery Operating Temperature: -18 to 55 °C
AC Adaptor Operating Temperature: 0 to 40 °C
