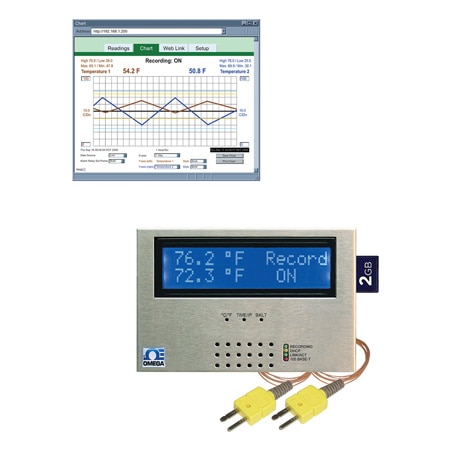

OMEGA ISD-TC-CAL-3K ການຕິດຕາມອຸນຫະພູມຜ່ານເວັບ (K, 1372 °C, Thermocouple, Wall Bracket Mount)
Alarm: Two contact inputs, TTL 0.5 mA with 10K pull-up; one open collector output 150 mA @ 30 Vdc
Width: 5.13 in
Height: 1.31 in
Length: 3.47 in
Memory: 2 GB SD Flash Card
Weight: 1.02 lb
Display: LCD
Software: OPC Server; macro for data logging in Excel program; compatible with Windows® operating systems
Approvals: CE, FCC-B
Input Type: External
Form factor: Wall Bracket Mount
Memory Note: 2GB card: 8 months of data storage at 1 second recording intervals or 7 years at 10 second intervals
Samples,Max: 85k Samples, Interval 16 Samples / Second, 1 Second recording intervals or 7 years at 10 sec intervals
Sensor Type: Thermocouple
Display Note: 32 digits 4.8 x 9.7 mm (0.19 x 0.38")
Relay Output: 1.5 A @ 30 Vdc
Configuration: Internal Web UI
Data Interface: Ethernet
Supply Voltage: 9 to 12 Vdc
Measurement Type: Thermocouple
Number of Relays: 2
Supply Power Note: Safety Qualified AC Power Adaptor:, Input: 100 to 240 Vac, 50/60 Hz, Nominal Output: 9 Vdc @ 0.5 A,(included), Back-up Battery: 9 Vdc, alkaline (included)
Supply Power Type: DC/Battery
Thermocouple Type: K
Data Interface Note: Ethernet : (RJ45) Fixed or auto negotiating 10/100BASE-T, AUTO MDI/MDIX Protocols: TCP, UDP, SNMP, SMTP, NTP, ARP, ICMP, DHCP, DNS, HTTP, and Telnet
Battery Size and Type: Alkaline 9V
Temperature Stability: 0.08°C/°C
Cable Temperature, Max: 125 °C
Cable Temperature, Min: -40 °C
Number of Measurements: 2
Temperature Resolution: 0.1 °C
Storage Temperature, Max: 85 °C
Storage Temperature, Min: -40 °C
Operating Temperature, Max: 60 °C
Operating Temperature, Min: 0 °C
Temperature Measurement, Max: 1372 °C
Temperature Measurement, Min: 260 °C
Thermocouple Lead Resistance: 100 Ω max
Battery Operating Temperature: -18 to 55 °C
Thermocouple Cold End Tracking: 0.05°C/°C
AC Adaptor Operating Temperature: 0 to 40 °C
