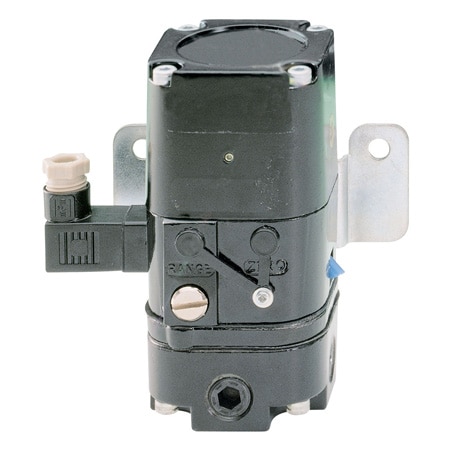

OMEGA IP210A-X30 ຕົວແປສະຫຼຸບກະທົບກັບຄວາມດັນຄວາມຕ້ອງການທົ່ວໄປ (30 psi, NPT Female, 1/4 in, IP65, NEMA Type 4X)
Weight: 590 g
Accuracy: ± 1.5 %
Mounting: Direct wall, panel, DIN rail
Approvals: Class I, Div. 1, Groups C and D
Impedance: 315 Ω
Materials: Stainless Steel, Brass, Zinc, Epoxy, Chromated Aluminum, NBR
EMC Standard: IEC 61000-4-3
Accuracy Note: Includes linearity, hysteresis and repeatability
Input Current: 4 to 20 mA
Input Voltage: N/A
Enclosure Type: N/A
Flow Rate Note: 12 scfm @ 100 psig 20 scfm @ 150 psig
Enclosure Ratings: IP65, NEMA Type 4X
Media Compatibility: Clean Dry Air
Input Control Signal: N/A
Output Pressure, Max: 30 psi
Output Pressure, Min: 6 psi
Supply Pressure, Max: 100 psi
Electrical Connection: DIN 43560 connector
Total Air Consumption: 0.1 SCFM
Process Connection Size: 1/4 in
Process Connection Type: NPT Female
Air Supply Pressure, Max: 100 psi
Air Supply Pressure, Min: 33 psi
Volumetric Flow Rate, Max: 12 SCFM
Operating Temperature, Max: 60 °C
Operating Temperature, Min: -30 °C
Supply Pressure Sensitivity: ±0.15% span per 1.5 psig
Material Construction Option: N/A
