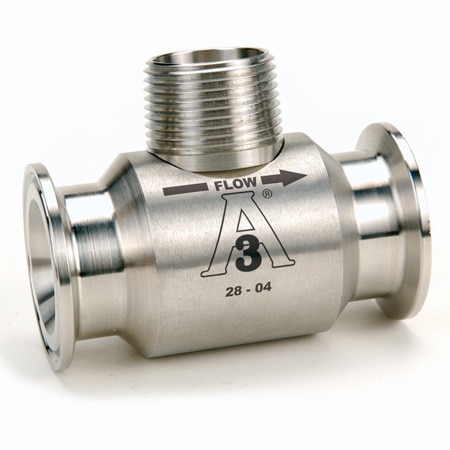

OMEGA GSCPS-150 ເຄື່ອງມືວັດຄຸນສົມບັດອຸນຫະພູມສູງປະເພດກວດກາລົດໄຟຟ້າ 3-A Certified Sanitary Clamp High Temperature Turbine Meters (1 1/2 in, Sanitary Clamp, 177 GPM)
Height: 2.11 in
Length: 4.59 in
Display: No Display
Accuracy: ± 0.5 %
K-Factor: 90 pulses/gal
Approvals: CIP, SIP
Design Type: Turbine
Output Detail: Choose Magnetic Pickup from Accessories
Repeatability: ±0.1%
Strainer Note: Recommended Strainer Size: 1000; Mesh Size: 18
Electrical Output: 100 to 1000 Hz
Materials, Wetted: 300 Stainless Steel, 316 Stainless Steel, CD4MCu Stainless Steel, PEEK
Media Compatibility: Liquids
Process Connection Size: 1 1/2 in
Process Connection Type: Sanitary Clamp
Volumetric Flow Rate, Max: 177 GPM
Volumetric Flow Rate, Min: 17.7 GPM
Operating Temperature, Max: 107 °C
Operating Temperature, Min: -74 °C
