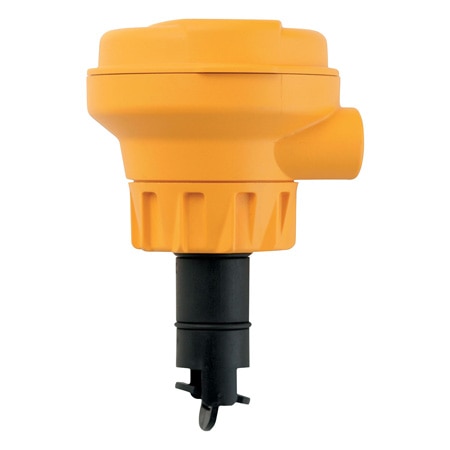

OMEGA FPB111 ເຄື່ອງມວນອັດຕະໂນມັດປະເພດພາຍໃນທົ່ວໄປ (± 1 %, 65 °C, 4 in, 21.6 to 26.4 Vdc)
Weight: 0 kg
Accuracy: ± 1 %
Approvals: CE
Cable Length: 1000 ft
Output Detail: Relay Rating: 5 A at 30 Vdc, 5 A @ 250 Vac; Pulse Rate: 300 Hz; Signal Averaging: Programmable 0 to 100 seconds; Sensitivity Response: Programmable 0 to 9 scale; Pulse Divider Setting: 1.0000 to 99999
Pressure Type: Gauge
Response Time: 100 ms
Velocity, Max: 6 m/s
Velocity, Min: 0.1 m/s
Linearity Note: ±1% of max range at 25°C
Pipe Size, Max: 4 in
Pipe Size, Min: 0.5 in
Supply Current: 30 mA max
Supply Voltage: 21.6 to 26.4 Vdc
Linearity Error: ±1%
Electrical Output: Pulse Divider, SPDT Relay
Enclosure Ratings: IP65, NEMA Type 4X
Materials, Wetted: Black Polypropylene, FKM, FPM, Polypropylene, Titanium
Relative Humidity: 0 to 90% RH, non-condensing
Supply Power Note: With Dry-Contact Relay: 24 Vdc, nominal (21.6 Vdc min to 26.4 Vdc max) 30 mA max current
Circuit Protection: Up to 40V for 1 hour
Repeatability Note: ±0.5% of max range at 25°C
Media Compatibility: Liquids
Repeatability Error: ±0.5%
Compatible Connectors: FP-5300 Sensor Installation Fittings
Frequency Input Range: 1 to 1000 Hz
Operating Pressure, Max: 180 psi
Operating Pressure, Min: 0 psi
Over-Voltage Protection: >40 Vdc over 1 hour
Process Temperature, Max: 65 °C
Process Temperature, Min: 0 °C
Storage Temperature, Max: 75 °C
Storage Temperature, Min: -10 °C
Operating Temperature, Max: 85 °C
Operating Temperature, Min: -18 °C
Material Construction Option: Polypropylene
