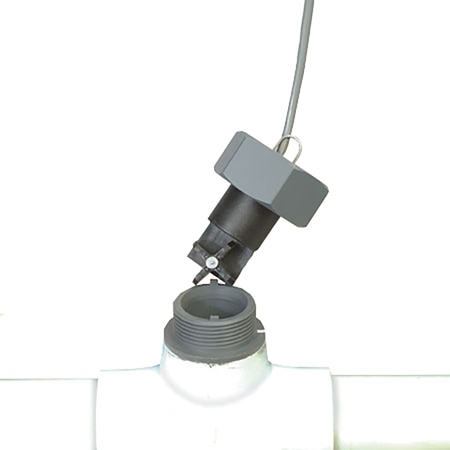

OMEGA FP7001A ເຄື່ອງມວນອຸນຫະພູມແລະອັດຕາໄຫຼເຄື່ອງວັດຄວາມຍາວຕິດຕັ້ງຖືກຕົກ (± 2 %, 93 °C, 460 GPM, 3 in, 5 to 18 Vdc, 1 Hz/fps)
Accuracy: ± 2 %
K-Factor: 1 Hz/fps
Cable Length: 8 ft
Output Detail: pulse
Pressure Type: Gauge
Pipe Size, Max: 3 in
Pipe Size, Min: 0.75 in
Supply Current: 10 mA max
Supply Voltage: 5 to 18 Vdc
Viscosity Range: 5 cPs
Electrical Output: Square Wave Pulse
Materials, Wetted: 316 Stainless Steel, FKM, Polypropylene, PVC
Supply Power Note: 5 to 18 Vdc @ 10 mA maximum
Pressure Drop Note: max pressure decreases 1.1 psig per each 0.56°C (1°F) above 27°C (80°F) for a max temperature of 93°C (200°F) at 18 psig maximum
Pressure Drop, Max: 1.1 psi
Repeatability Error: ±1%
Temperature Accuracy: ± 1 °C
Operating Pressure Note: 0 to 26°C (32 to 80°F) up to 150 psig; max. pressure decreases 1.1 psig per each 0.56°C (1°F) above 27°C (80°F) for a maximum temperature of 93°C (200°F) at 18 psig maximum
Operating Pressure, Max: 150 psi
Operating Pressure, Min: 0 psi
Process Connection Size: N/A
Process Temperature, Max: 93 °C
Process Temperature, Min: 0 °C
Volumetric Flow Rate, Max: 460 GPM
Volumetric Flow Rate, Min: 2 GPM
Operating Temperature, Max: 150 °C
Operating Temperature, Min: 2 °C
Material Construction Option: N/A
