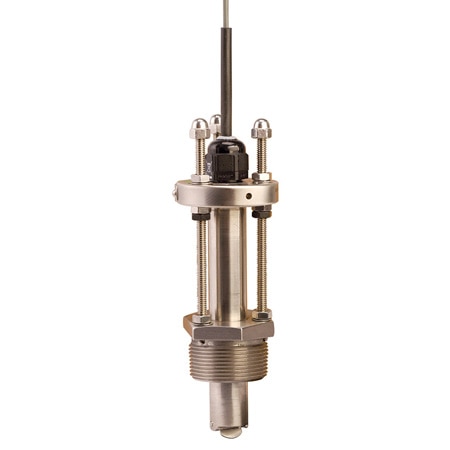

OMEGA FP-2541 ມາດເຕີກການໄຫຼຂອງລົດພັດເລີດຮ້ອນທັງໝົດທີ່ເປັນເຫັນໄດ້ (± 1 %, 82 °C, 1 1/2 in, NPT Male, 24 in, 5 to 24 Vdc, 15 Hz/fps)
Weight: 0 kg
Accuracy: ± 1 %
K-Factor: 15 Hz/fps
Approvals: CE
Cable Type: Twisted Pair with Foil Shield
Cable Length: 25 ft
Output Detail: Output Signal: Open collector, sinking, Output Frequency: 15 Hz per fps
Pressure Type: Gauge
Velocity, Max: 20 ft/s
Velocity, Min: 0.3 ft/s
Pipe Size, Max: 24 in
Pipe Size, Min: 1.5 in
Supply Voltage: 5 to 24 Vdc
Linearity Error: ±1%
Cable Length Note: 7.6 m (25') 305 m (1000') maximum
Electrical Output: Open Collector, Sinking
Materials, Wetted: 316 Stainless Steel, FKM, PEEK
Media Compatibility: Liquids
Repeatability Error: ±0.5%
Mounting Orientation: N/A
Pipe Connection Note: Hot Tap
Operating Pressure, Max: 250 psi
Operating Pressure, Min: 0 psi
Process Connection Size: 1 1/2 in
Process Connection Type: NPT Male
Process Temperature Note: With standard FKM O-rings: 250 psi @82°C (180°F)
Process Temperature, Max: 82 °C
Process Temperature, Min: 0 °C
Operating Temperature, Max: 149 °C
Operating Temperature, Min: -46 °C
Material Construction Option: N/A
