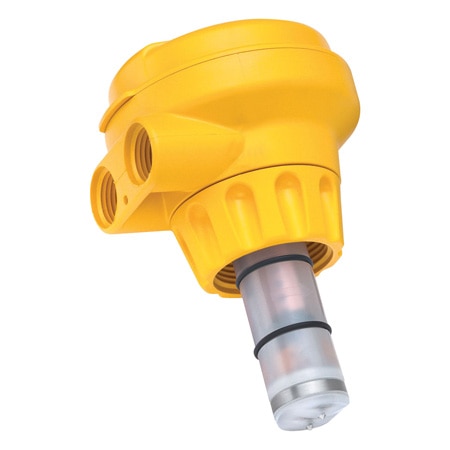

OMEGA FMG3001-PP-D ເຄື່ອງມວນອຸປະກອນການໄຫຼໄຟຟ້າອີເລັກໂຕຣແມກເຕີມີຄວາມລຶກຄົງ, ໂປລິໂພຣພິເລນ, ການແຊກເຂົ້າ (± 1 %, 85 °C, 0 GPM, PBT, Ployamide, 4 in, 4.5 to 26.4 Vdc)
Accuracy: ± 1 %
Approvals: CE
Isolation: Low voltage <48 Vac/Vdc from electrodes and auxiliary power
Linearity: ± 1%
Materials: PBT, Ployamide
Switch Type: SPDT NO/NC, Selectable
Cable Length: 1000 ft
Conductivity: > 20 µS/cm
Display Note: 2 x 16 Display
Display Type: LCD
Loop Accuracy: 32 µA maximum error (25°C @ 24 Vdc)
Output Detail: Amplified Square Wave
Output Signal: DC Pulse
Repeatability: ± 0.5%
Switch Rating: 5 A @ 30 Vdc maximum, 5 A @ 250 VAC maximum
Velocity, Max: 16.4 ft/s
Velocity, Min: 0.15 ft/s
Linearity Note: ± 1% reading + 0.01 m/s (± 1% reading + 0.033 ft/s)
Pipe Size, Max: 4 in
Pipe Size, Min: 0.5 in
Supply Voltage: 4.5 to 26.4 Vdc
Error Condition: 22.1 mA
Loop Resistance: 300 Ω
Current Sink, Max: 50 mA
Enclosure Ratings: IP65, NEMA Type 4X
Materials, Wetted: 316L Stainless Steel, FKM, Polypropylene
Number of Outputs: 1
Relative Humidity: 0.95
Solid State Relay: 50 mA @ 30 Vdc, 50 mA @ 42 Vac
Supply Power Note: 4.5 to 26.4 Vdc, 15 mA maximum, reverse polarity and short circuit protected
Supply Power Type: DC
Repeatability Note: ± 0.5% of rdg @ 25°C (77°F)
Media Compatibility: Acid Solutions, Conductive Liquids, Saltwater
Pull Up Voltage, Max: 30 Vdc
Output Pulse Rate, Max: 1000 Hz
Power Supply Rejection: ± 1 µA/V
Temperature Drift Note: ± 1 μA
Operating Pressure, Max: 150 psi
Process Connection Type: N/A
Process Temperature, Max: 85 °C
Process Temperature, Min: 0 °C
Storage Temperature, Max: 70 °C
Storage Temperature, Min: -20 °C
Volumetric Flow Rate, Max: 0 GPM
Volumetric Flow Rate, Min: 0 GPM
Operating Temperature, Max: 70 °C
Operating Temperature, Min: -10 °C
