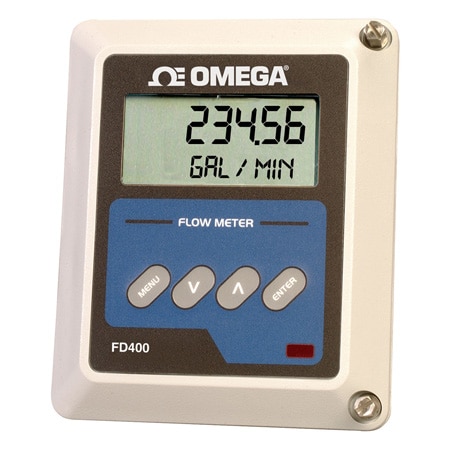

OMEGA FD-433 ເຄື່ອງມວນອັດຕະໂນມັດການໄຫຼຂອງໂດປເລີ (120 in, Wall Mount)
Keypad: Yes
Accuracy: ± 2 %, ± 5% with transitional flow
Materials: Polycarbonate, Stainless steel, Brass, Plated-steel mounting brackets
Form factor: Wall Mount
Pulse Rates: 2500 Hz
Cable Length: 6 m
Display Note: 2-line x 8-character LCD; LED backlighting; top row, 7-segment 18 mm (0.7"); bottom row, 14-segment 9 mm (0.35"); 8-digit rate, 8-digit total (resettable)
Display Type: LCD
Supply Power: 115 Vac
Accuracy Note: ±2% FS over calibrated span
Output Detail: Open Collector Output - 1 A at 100 Vmax
Response Time: 1 to 60 sec
Velocity, Max: 9 m/s
Velocity, Min: 0.05 m/s
Certifications: CE
Control Output: N/A
Pipe Size, Max: 120 in
Pipe Size, Min: 0.3333 in
Measurement Type: Doppler Ultrasonic
Number of Digits: 8
Electrical Output: 4 to 20 mA, Two Amplified Square Wave
Enclosure Ratings: IP66, NEMA Type 4X
Number of Outputs: 2
Supply Power Note: 115/230 Vac, 50/60 Hz ±15% @ 5 VA max; 12 to 28 Vdc @ 2.5 VA max
Supply Power Type: AC
Calibration Option: NIST
Operating Temperature, Max: 85 °C
Operating Temperature, Min: -40 °C
