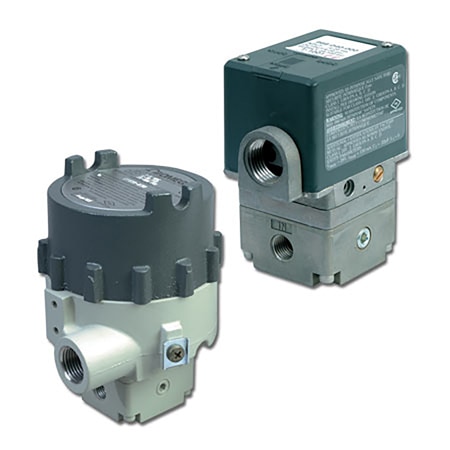

OMEGA EP511-0120 ຕົວແປກະວົງກະທົບຫນັກສຳລັບກະວົງໄຟຟ້າຫຼືແຮງດັບໄຟຟ້າເຂົ້າເພື່ອປ່ຽນແປງເປັນແຮງດັບຄວາມດັນ (120 psi, NPT Female, 1/4 in, IP65, NEMA Type 4X)
Accuracy: ± 0.1 %
Approvals: FM, CSA
Impedance: 6000 Ω
Span Note: 0.013% of calibrated span per ºF, 0.022% of calibrated span per ºF
Span, Max: 0.00013
Vibration: Less than 0.5% of span per 1 g 5 to 2000 Hz, 3 g maximum, 3 axes
Hysteresis: ±0.1%
Accuracy Note: ±0.25% of output span
Input Current: N/A
Input Voltage: 1 to 5 Vdc
Repeatability: ±0.01%
Enclosure Type: NEMA Type 4X, IP65
Supply Voltage: 9 to 40 Vdc
Enclosure Ratings: IP65, NEMA Type 4X
Supply Power Note: Supply Voltage, E/P Transducer: Intrinsically Safe/Non-Incendive: 9 to 28 Vdc, less than 20 mA General Purpose: 9 to 40 Vdc, less than 20 mA
Repeatability Note: ±0.10% of output span
Media Compatibility: Air
Input Control Signal: N/A
Output Pressure, Max: 120 psi
Output Pressure, Min: 0 psi
Supply Pressure, Max: 100 psi
Electrical Connection: 1/2 in NPT Female Conduit
Total Air Consumption: 0.07 SCFM
Loop Voltage Drop Note: Less than 10 Vdc drop at 20 mA Less than 10 Vdc drop at 50 mA
Process Connection Size: 1/4 in
Process Connection Type: NPT Female
Hazardous Classification: Vmax = 30 Vdc, Imax = 100 mA, Ci = 0 µF, Li = 0 mH T4 Max. Ambient 70°C. Voc and Isc of a barrier shall not exceed Vmax and Imax of the transducer. (Li + wiring) and (Ci + Cwiring) shall not exceed La and Ca of a barrier. A barrier is not necessary when the transducer is in any of these locations.
Storage Temperature, Max: 93 °C
Storage Temperature, Min: -40 °C
Operating Temperature, Max: 71 °C
Operating Temperature, Min: -29 °C
Total Air Consumption Note: 0.07 SCFM (2 LPM) maximum
Supply Pressure Sensitivity: No effect
Material Construction Option: CSA Approved and FM Approved
Ambient Temperature Effect, Max: ±0.022% of nominal span per ºF
