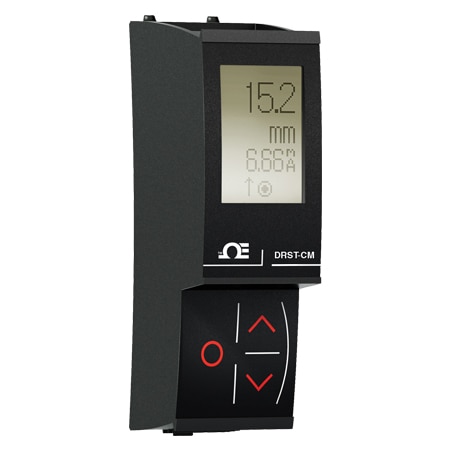

OMEGA DRST-CM ອຸປະກອນຕັ້ງຄ່າກະບູລຫນ້າສະແດງທີ່ມີ Modbus ຜ່ານ RS-485
Width: 23.3 mm
Height: 73.2 mm
Length: 26.5 mm
Weight: 30 g
Isolation: Isolation voltage, test/working :2.5 kVAC / 250 VAC reinforced isolation
Update Rate: > 50 Hz
Display Type: N/A
Installation: Pollution degree 2 and measurement/overvoltage category II
Response Time: < 20 ms
Approvals Note: EMC:2014/30/EU, LVD:2014/35/EU, EAC:TR-CU 020/2011
Data Interface: RS485, Modbus RTU
EMC Immunity Note: NAMUR NE21, A criterion, burst: No loss of communication
Enclosure Ratings: IP20
Noise Calibration: >60 dB
Power Consumption: max 0.15 W
Relative Humidity: <95% RH
Response Time Note: Response delay: 0…1000 ms Data rates, baud: 2400, 4800, 9600, 19200,38400, 57600, 115200 Automatic baudrate detection: Yes - can be configured ON or OFF Parity: Even, Odd, None Stop bit(s): 1 or 2 Digital addressing: 1...247 Response delay: 0...1000 ms
Electrical Connection: RJ45
Storage Temperature, Max: 85 °C
Storage Temperature, Min: -20 °C
Operating Temperature, Max: 60 °C
Operating Temperature, Min: -20 °C
