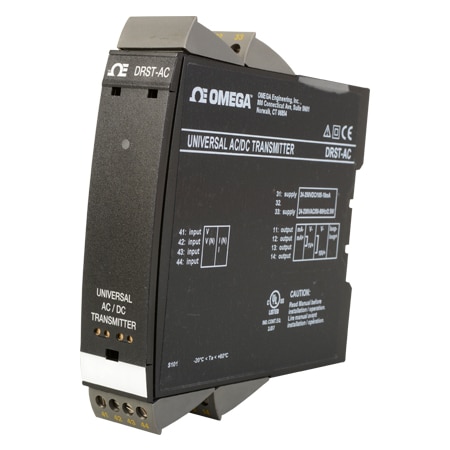

OMEGA DRST-AC ຕົວສົ່ງສະຕິກແບບສາຍ DIN ກະວີໄຟ AC ແລະແຮງແສງໄຟຟ້າ (AC Current , Voltage, 0 to 300 Vac, 0 to 5 A)
CMRR: 0.02 ppm/VHz
Width: 23.5 mm
Height: 109 mm
Length: 104 mm
Weight: 250 g
Accuracy: ± 0.3 %
Mounting: DIN Rail 35 mm Standard, EN 60715
Approvals: UL, RoHS
Isolation: 2.3 kVac
Stability: Load Stability: ≤0.01% of span/100 Ω
Vibration: IEC 60068-2-6
Input Type: AC Current , Voltage
Wire Gauge: 26 to 14 AWG
Display Type: Programmer
EMC Standard: NAMUR NE 21
Installation: Pollution degree 2 and measurement/overvoltage category II
Output Value: Process
Accuracy Note: Better than 0.3% of selected range*
Output Detail: Active Unipolar and Bipolar mA Output Programmable Ranges: 0 to 20, 4 to 20 and S4 to 20 mA Programmable Ranges: ±10 and ±20 mA Programmable Ranges: Direct or Inverted Action V-Curve Function, Active Signals, 100-0-100%: 20-0 to 20 mA Passive 2-Wire mA Output Programmable Ranges: 0 to 20 and 4 to 20 mA Programmable Ranges: Direct or Inverted action V-Curve Function, 100-0 to 100%: 20-0 to 20 mA External Loop Supply: 3.5 to 30 V Current Output Signal Range: -23 to +23 mA (bipolar) Current Limit: ≤ 28 mA (unipolar) Current Limit: ± 28 mA (bipolar) Voltage Output Programmable Signal Ranges: 0/0.2 to 1; 0/1 to 5 ; 0/2 to 10; 1 to 0.2/0; 5 to 1/0; 10 to 2/0 V Programmable Signal Ranges: ±1, ±5 and ±10 V Programmable Signal Ranges: Direct or Inverted Action V-Curve Function, 100-0-100%:1-0-1, 5-0-5 and 10-0-10 V
Output Signal: Current, Voltage
Response Time: < 0.75 s
Approvals Note: EMC: 2014/30/EU, LVD: 2014/35/EU, RoHS: 2011/65/EU, UL: UL 508 / C22.2 no. 14, NB: For custom configurable signal ranges, general accuracy and EMC specifications are 0.3% of full sc
Supply Voltage: 21.6 to 253 Vac, 19.2 to 300 Vdc
Vibration Note: 2 to 13.2 Hz: ±1 mm;13.2 to 100 Hz: ±0.7 g
Load Resistance: Current Output: ≤ 800 Ω, Voltage Output: 500 kΩ
Input Range Note: Current Input:;Maximum Input Limit: 6.00 AAC @ 40°C;Programmable Measurement Ranges: 0 to 0.5; 0 to 1; 0 to 2.5 and 0 to 5 AAC;Custom Configurable Signal Range: 0 to 5 AAC/40 to 400 Hz;Min. Measurement Range (Span): 0.5 AAC;Input Resistance: Nom. < 0.07 Ω;Voltage Input:;Programmable Measurement Ranges:0 to 0.5, 0 to 1, 0 to 2.83, 0 to 5, 0 to 120, 0 to 230 and 0 to 300 Vac;Custom Configurable Signal Range: 0 to 300 Vac/40 to 400 Hz;Min. Measurement Range (Span): 0.5 Vac;Input Resistance: Nom. 3 MΩ
Number of Inputs: 1
EMC Immunity Note: NAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)
Electrical Output: 0 to 23 mA
Enclosure Ratings: IP20
Noise Calibration: >60 dB
Power Consumption: max 1.8 W
Power Dissipation: ≤ 2.5 W
Relative Humidity: <95% RH
Supply Power Type: AC/DC
Response Time Note: Response Time (0...90%, 100...10%): < 0.75 s
Voltage Output Range: ± 1 V, ± 5 V, ± 10 V
Screw Terminal Torque: 0.5 Nm
Signal Dynamics Input: 20 bit
Signal Dynamics Output: 18 bit
Current Measurement Range: 0 to 5 A
Voltage Measurement Range: 0 to 300 Vac
Operating Temperature, Max: 60 °C
Operating Temperature, Min: -20 °C
Calibration Temperature, Max: 28 °C
Calibration Temperature, Min: 20 °C
