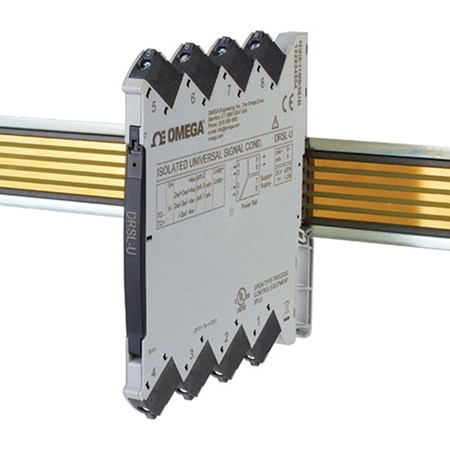

OMEGA DRSL-U ອຸປະກອນປັບສັນຍານຂາວທົ່ວໄປສໍາລັບສາຍລົດ DIN ພ້ອມກັບກອງຮູບແບບບາງ (Thermocouple, RTD, Resistance, Potentiometer, Current, Voltage, 0 to 12V, J: -100 to 1200°C, K: -180 to 1372°C, T: -200 to 400°C, E: -100 to 1000°C, R: -50 to 1760°C, S: -50 to 1760°C, B: 0 to 1820°C, N: -180 to 1300°C, L: -200 to 900°C, U: -200 to 600°C, Pt 100: -200 to 850°C, 0 to 20 mA)
Width: 6.1 mm
Height: 113 mm
Length: 115 mm
Weight: 70 g
Accuracy: ± 0.1 %
Mounting: DIN Rail 35 mm Standard, EN 60715
Approvals: CE, UL, RoHS
Isolation: 300 Vac
Stability: Load Stability: ≤0.01% of span/100 Ω
Input Type: Thermocouple, RTD, Resistance, Potentiometer, Current, Voltage
Wire Gauge: 26 to 12 AWG
EMC Standard: NAMUR NE 21
Installation: Pollution degree 2 and measurement/overvoltage category II
Output Value: Process
Accuracy Note: All Input Types: ≤±0.1% of span (selected input range)
Output Detail: Current Output Signal Range: 0 to 20 mA (span) Programmable Signal Ranges:0 to 20 mA, 4 to 20 mA, 20 to 0 mA and 20 to 4 mA Range Limits (NAMUR NE43 Out of Range):Below 3.8 mA or above 20.5 mA for4 to 20 mA output; 0 mA or above 20.5 mA for 0 to 20 mA output Sensor Error Detection:Below 3.5 mA or above 23 mA for4 to 20 mA output; 0 mA or above23 mA for 0 to 20 mA output Current Limit: ≤28 mA Voltage Output Programmable Signal Ranges:0 to 1V, 0.2 to 1V, 0 to 5V, 1 to 5V,0 to 10V, 2 to 10V, 1 to 0.2V, 1 to 0V,5 to 1V, 5 to 0V, 10 to 2Vand 10 to 0V
Output Signal: Current, Voltage
Response Time: ≤ 1 ms
LED Indicators: Status LED: Green LED indicates ;operational status of the unit and ;input sensor; Normal Operation: Flashes for;15 ms at 13 Hz rate;Sensor Error: Flashes for 15 ms;at 1 Hz rate;Hardware Failure: LED off
Supply Voltage: 16.8 to 31.2 Vdc
Load Resistance: Current Output: 20 mA/600 Ω/15 Vdc max, Voltage Output:>10 kΩ;
Number of Inputs: 6
EMC Immunity Note: NAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)
Electrical Output: 4 to 20 mA
Enclosure Ratings: IP20
Noise Calibration: >60 dB
Power Consumption: 1.2 W, Internal - max 0.65 W
Relative Humidity: 0 to 95% RH (non-condensing)
Supply Power Note: 16.8 to 31.2 Vdc via power rail or connectors
Supply Power Type: DC
Response Time Note: Response Time (0 to 90%, 100 to 10%) for Temperature Input: ≤1 s Response Time (0 to 90%, 100 to 10%) for mA/V input: ≤400 ms
Voltage Output Range: 0 to 10 Vdc
Additional Features 1: Universal
Screw Terminal Torque: 0.5 Nm
Temperature Coefficient: <±0.01% of span/°C
Storage Temperature, Max: 85 °C
Storage Temperature, Min: -40 °C
Current Measurement Range: 0 to 20 mA
Voltage Measurement Range: 0 to 12V
Operating Temperature, Max: 70 °C
Operating Temperature, Min: -25 °C
Calibration Temperature, Max: 28 °C
Calibration Temperature, Min: 20 °C
Temperature Coefficient Note: All Input Types: ≤± 0.01% of span/°C
Temperature Measurement Range: J: -100 to 1200°C, K: -180 to 1372°C, T: -200 to 400°C, E: -100 to 1000°C, R: -50 to 1760°C, S: -50 to 1760°C, B: 0 to 1820°C, N: -180 to 1300°C, L: -200 to 900°C, U: -200 to 600°C, Pt 100: -200 to 850°C
