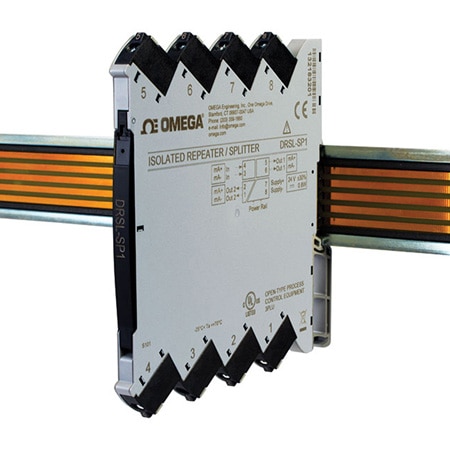

OMEGA DRSL-SP1 ຕົວຂະຫຍາຍ/ຕັດແຍກສັນຍາສະຕິມທີ່ຖືກແຍກອອກຈາກລະບົບ DIN Rail ສໍາລັບສັນຍາປະຕິບັດກະທົບປະຕິບັດປະຕິບັດປະຕິບັດ Current Signals (Current, 0 to 20.5 mA)
Width: 6.1 mm
Height: 113 mm
Length: 115 mm
Weight: 70 g
Accuracy: ± 0.05 %
Mounting: DIN Rail 35 mm Standard, EN 60715
Approvals: CE, UL, RoHS
Isolation: Isolation: Input/output 1/output 2/supply;Isolation Voltage (Test): 2.5 kVac;Isolation Voltage (Working):300 Vac
Stability: Load Stability: ≤0.01% of span/100 Ω
Input Type: Current
Wire Gauge: 26 to 12 AWG
EMC Standard: NAMUR NE 21
Installation: Pollution degree 2 and measurement/overvoltage category II
Output Value: Splitter
Voltage Loss: <1.5 V
Output Detail: Signal Range: 0 to 20.5 mA (span) Current Limit: ≤28 mA
Output Signal: Current
Response Time: < 7 ms
Supply Voltage: 16.8 to 31.2 Vdc
Load Resistance: Current Output: 23 mA/600 Ω max
Input Range Note: Functional Range: 0 to 23 mA; Input Voltage Drop: <1.5 Vdc
Number of Inputs: 1
EMC Immunity Note: Extended EMC Immunity NAMUR NE 21, A Criterion, Burst: <±1% of span
Electrical Output: 0 to 20.5 mA
Enclosure Ratings: IP20
Noise Calibration: >60 dB
Power Consumption: 0.8 W, Internal - max 0.65 W
Relative Humidity: 0 to 95% RH (non-condensing)
Supply Power Note: 16.8 to 31.2 Vdc via power rail or connectors
Supply Power Type: DC
Response Time Note: Response Time (0 to 90%, 100 to 10%): <7 ms
Additional Features 1: Repeater/Splitter
Screw Terminal Torque: 0.5 Nm
Temperature Coefficient: <±0.01% of span/°C
Storage Temperature, Max: 85 °C
Storage Temperature, Min: -40 °C
Current Measurement Range: 0 to 20.5 mA
Operating Temperature, Max: 70 °C
Operating Temperature, Min: -25 °C
Calibration Temperature, Max: 28 °C
Calibration Temperature, Min: 20 °C
