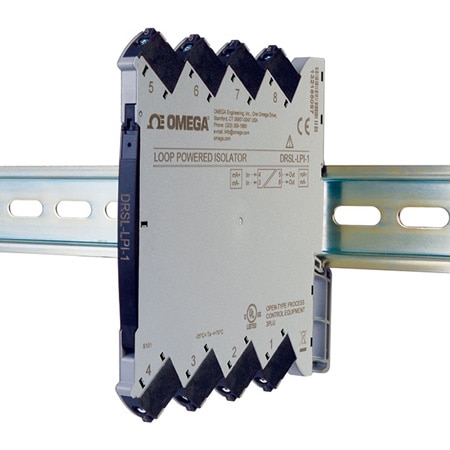

OMEGA DRSL-LPI-1 ອຸປະກອນກັນແລະປ້ອງກັນສະຫນາມການຮັບສະເຫຼີມພະລັງງານລູບພາຍໃນລະບົບ DIN Rail ມີແບບ 1 ຫຼື 2 ຊ່ອງ (Current, 0 to 20.5 mA)
Width: 6.1 mm
Height: 113 mm
Length: 115 mm
Weight: 70 g
Accuracy: ±10 µA + 0.05 %
Mounting: DIN Rail 35 mm Standard, EN 60715
Approvals: CE, UL, RoHS
Bandwidth: 100 Hz
Isolation: Isolation Voltage (Test): 2.5 kVac ;Isolation Voltage (Working):300 Vac
Stability: Load Stability: ≤0.01% of span/100 Ω
Input Type: Current
Wire Gauge: 26 to 12 AWG
EMC Standard: NAMUR NE 21
Installation: Pollution degree 2 and measurement/overvoltage category II
Output Value: Process
Voltage Loss: (Unit voltage drop) + Vout
Output Detail: Output Load: 600Ω max Output Load Stability: <0.01% of span/100 Ω (span = 0 to 20 mA) Voltage Limit: 17.5V
Output Signal: Current
Response Time: < 5 ms
Conversion Rate: 1:1
Input Range Note: Current; Signal Conversion: 1 to 1; Functional Range: 0 to 23 mA (NAMUR NE43 compliant); Start up Current: 10 µA typical; Input Overload: 50 mA max; Input to Output Voltage Drop:1.25V + (0.015 x Vout)where Vout = Iout x Routput, typical; Input Voltage Drop:(Unit voltage drop) + Vout
Number of Inputs: 1
EMC Immunity Note: Extended EMC Immunity NAMUR NE 21, A Criterion, Burst: <±1% of span
Electrical Output: 0 to 20 mA
Enclosure Ratings: IP20
Noise Calibration: >60 dB
Power Consumption: 30 mW
Relative Humidity: 0 to 95% RH (non-condensing)
Supply Power Type: Loop Powered
Response Time Note: Response Time (0 to 90%, 100 to 10%): <5 ms
Screw Terminal Torque: 0.5 Nm
Temperature Coefficient: ≤±2 µA/°C
Storage Temperature, Max: 85 °C
Storage Temperature, Min: -40 °C
Current Measurement Range: 0 to 20.5 mA
Operating Temperature, Max: 70 °C
Operating Temperature, Min: -25 °C
Calibration Temperature, Max: 28 °C
Calibration Temperature, Min: 20 °C
