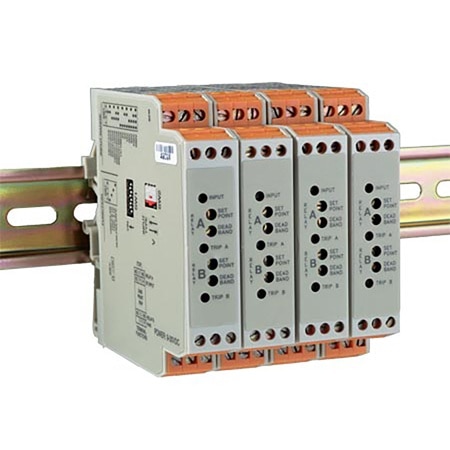

OMEGA DRG-SC-RTD ອຸປະກອນປັບສະພາບສາຍ DIN ທີ່ສາມາດກຳນົດໄດ້ພ້ອມກັບປະເພດຂໍ້ມູນເຂົ້າທີ່ມີຮູບແບບຕາມແບບຮ່າງ (RTD, RTD: -200 to 600°C)
Width: 17.7 mm
Height: 90 mm
Length: 1102 mm
Accuracy: ± 0.1 %
Mounting: DIN Rail 32 mm Standard or 35 mm
Approvals: CE
Isolation: 1800 Vdc
Standards: IEC 801-2, Level 2
Case Style: B
Compliance: 0 to 1 mA: 7.5V, max (7.5 kΩ), 4 to 20 mA: 12 V, max (600 Ω)
Input Type: RTD
Accuracy Note: Accuracy (including linearity, hysteresis): ±0.1% typical, ±0.2% max. the maximum input temperature range @ 25°C, 0 Ω lead resistance.
Output Signal: Current, Voltage
Response Time: 200 msec
Supply Voltage: 9 to 30 Vdc
Input Range Note: α = 0.00385Ω/Ω/°C
Number of Inputs: 1
Wire Code Option: 3- Wire
Electrical Output: 0 to 1 mA, 0 to 20 mA, 4 to 20 mA
Relative Humidity: Operating: 15 to 95% (@45°C), Soak: 90% for 24 hours (@65°C)
Supply Power Note: 9-30 Vdc, 1.5 W typical, 2.5 W max
Supply Power Type: DC
Excitation Current: < 2 mA for Pt100, Pt500, Pt1000; <5 mA for Cu100; <10 mA for Cu10, Cu25
Response Time Note: (10 to 90%): 500 mSec. Typical
Lead Resistance, Max: <1% of the maximum input temperature span.
Voltage Output Range: 0 to 5 V, 0 to 10 V
Sensor/Transmitter Power: 40% of base sensor resistance or 100Ω (whichever is less), max. per lead
Storage Temperature, Max: 70 °C
Storage Temperature, Min: -25 °C
Operating Temperature, Max: 55 °C
Operating Temperature, Min: 0 °C
Temperature Measurement Range: RTD: -200 to 600°C
