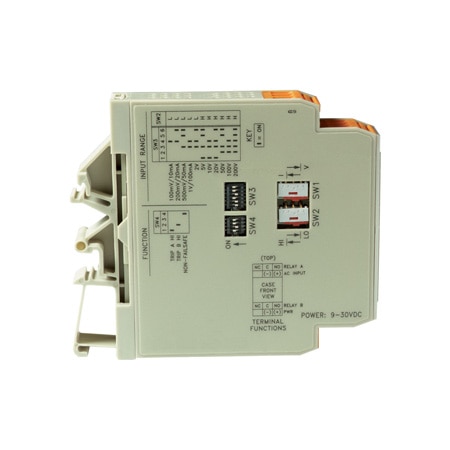

OMEGA DRG-AR-AC ໂມດູນຂອງຂະບວນການກຳນົດຂອບເຂດເປັນພາກພື້ນຂອງລະບົບສັນຍານເຕືອນ DIN Rail (AC Current , Voltage, 100 mV to 200 V, 10 mA to 100 mA)
Width: 17.7 mm
Height: 90 mm
Length: 1102 mm
Deadband: Relay status will change when proper setpoint condition exists for 100 msec
Mounting: DIN Rail 32 mm Standard or 35 mm
Approvals: CE
Isolation: 1800 Vdc
Materials: Silver-Cadium Oxide
Standards: IEC 801-2, Level 2
Input Type: AC Current , Voltage
Wire Gauge: 22 to 12 AWG
Overcurrent: Current: 200 mAac
Overvoltage: Voltage: 300 Vac, Current: 60V
Output Value: Process
Relay Output: 120 Vac @ 5A, 240 Vac @ 2A, 28 Vdc @ 5A
Output Detail: Relay Contacts 2 SPDT (2 form C) Relays 1 Relay per setpoint Current Rating: 120 Vac: 5A, 240 Vac: 2A, 28 Vdc: 5A
Output Signal: Relay
Response Time: <250 msec
Supply Voltage: 9 to 30 Vdc
Impedance Input: Voltage: >100 kΩ, Current: 20 Ω
Number of Inputs: 1
Relative Humidity: Operating: 15 to 95% (@45°C), Soak: 90% for 24 hours (@65°C)
Supply Power Note: 9 to 30 Vdc, 1.5 W typical, 2.5 W max
Supply Power Type: DC
Supply Power Effects: 40 to 400 Hz
Electrical Connection: Screw Terminal
Setpoint Repeatability: 0.0002
Storage Temperature, Max: 70 °C
Storage Temperature, Min: -25 °C
Current Measurement Range: 10 mA to 100 mA
Voltage Measurement Range: 100 mV to 200 V
Operating Temperature, Max: 55 °C
Operating Temperature, Min: 0 °C
Limit Differentials (Deadbands): 0.25% to 5% of span
