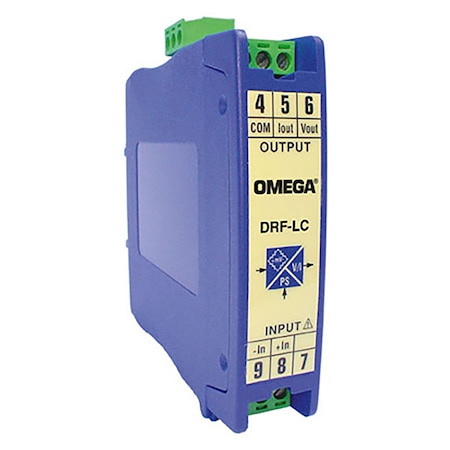

OMEGA DRF-LC-24VDC-20MV-0/10 ອຸປະກອນປັບສັນຍານຂາຍເຂົ້າເຄື່ອງມືວາງແຖບ DIN (Voltage, 0 to 20 mV dc)
Width: 22.5 mm
Height: 110 mm
Length: 93 mm
Weight: 120 g
Accuracy: ± 0.2 %
Mounting: DIN Rail Mount
Approvals: CE
Bandwidth: 20 Hz (-3dB)
Isolation: 3500 Veff
Linearity: <0.1%
Input Type: Voltage
Protection: Over Range Protection: 15V
Output Value: Process
Output Detail: Maximum Voltage Output: 11 Vdc approx. Minimum Voltage Output: -1 Vdc approx.
Output Signal: Voltage
Response Time: <75 msec (90% of signal)
Supply Voltage: 24 Vdc
Impedance Input: 5 MΩ
Load Resistance: Voltage Output : ≥1 KΩ, Current Output : ≤400Ω
Number of Inputs: 1
Enclosure Ratings: IP30
Power Consumption: max 3.8 VA
Supply Power Note: 24 Vdc ±10%, 230 Vac ±10% 50/60 Hz, 115 Vac ±10% 50/60 Hz
Supply Power Type: DC
Temperature Drift: 250 ppm/°C
Voltage Output Range: 0 to 10 Vdc
Electrical Connection: Screw Terminal
Storage Temperature, Max: 70 °C
Storage Temperature, Min: -20 °C
Voltage Measurement Range: 0 to 20 mV dc
Operating Temperature, Max: 60 °C
Operating Temperature, Min: 0 °C
