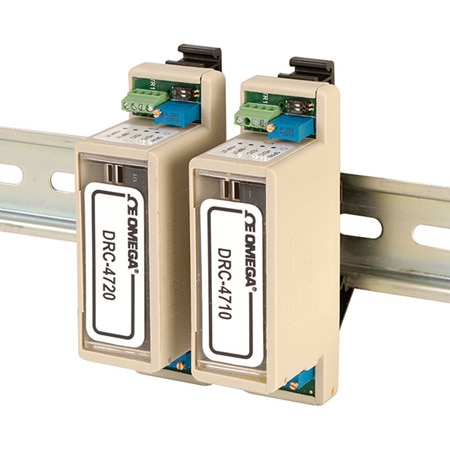

OMEGA DRC-4720 ອຸປະກອນປ່ຽນແປງສະພາບຂາຍຂໍ້ມູນຂອງສາຍລົດ DIN ສໍາລັບເຄື່ອງວັດແລະເຄື່ອງວັດຄວາມຕື່ນເຕັ້ນ (Voltage, 0 to 30 mV dc)
CMRR: 100 dB (dc)
Width: 27 mm
Height: 96 mm
Length: 42 mm
Offset: Input Offset Voltage: ± 70 µV
Weight: 85 g
Mounting: DIN Rail Mount
Bandwidth: DC to 10 Hz
Linearity: ±0.01%
Input Type: Voltage
Output Value: Process
Output Detail: Fixed Output: 10V ±1.0%
Output Signal: Current
Supply Voltage: 18 to 26 Vdc
Input Range Note: Input Range: 0 to 10 mV, 0 to 20 mV, 0 to 30 mV (dip switch selectable), Input Current (One 350 Ω Bridge): 40 mA
Number of Inputs: 1
Electrical Output: 4 to 20 mA
Supply Power Type: DC
Common Mode Voltage: 0 to 5V
Input Noise Voltage: 0.3 µV pp typ (0.1 to 10 Hz);
Voltage Output Range: 0 to 10 Vdc
Temperature Coefficient: 0.05%/°C
Storage Temperature, Max: 80 °C
Storage Temperature, Min: -40 °C
Voltage Measurement Range: 0 to 30 mV dc
Operating Temperature, Max: 55 °C
Operating Temperature, Min: 0 °C
Temperature Coefficient Note: Input : 0.05%/°C Input Offset Voltage Temperature Coefficient : 0.7 µV/°C BRIDGE: 0.05%/°C Output ( Total RMS gain temperature Coefficient : 0.007%/°C
Zero Setting Adjustable Range: 20% max output
