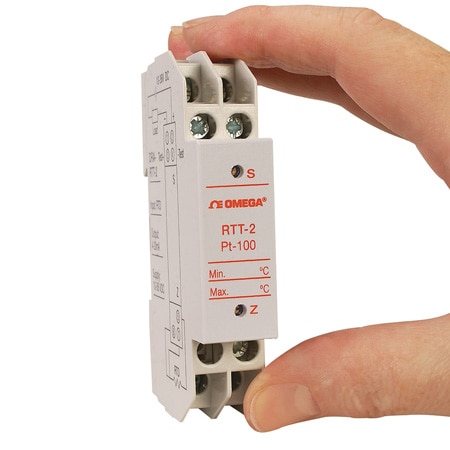

OMEGA DRA-RTT-2 ອຸປະກອນປັບສະພາບສັນຍານຂາວຂ້າງ RTD ທີ່ໃຊ້ພາລະກິດຈາກລູບ DIN (RTD, Pt100: 30 to 810°C)
Width: 17.5 mm
Height: 90 mm
Length: 58 mm
Weight: 70 g
Accuracy: ± 0.1 %
Mounting: DIN Rail 35 mm Standard
Isolation: None
Materials: Polycarbonate
Input Type: RTD
Output Value: Process
Accuracy Note: < ±0.1% of span (including linearity, hysteresis and repeatability)
Output Signal: Current
Supply Voltage: 10 to 36 Vdc
Loop Resistance: Rmax (Ω) = (Vsupply - 10)/0.02
Input Range Note: 3-wire Pt 100 RTD, α= 0.00385, according to DIN 43760/BS1904;Field Ranging: Done by three “zero” DIP switches, three “span” DIP switches and two fine tuning potentiometers
Number of Inputs: 1
Electrical Output: 4 to 20 mA
Enclosure Ratings: IP20, IP40
Relative Humidity: 5 to 95% RH, noncondensing
Supply Power Type: DC
Excitation Current: < 1 mA
Resistance Tolerance: < ±0.05°C/10 Ω lead resistance
Additional Features 1: Non-Isolated; Test Terminals: 40 to 200 mV represents 4 to 20 mA
Temperature Stability: <±0.015% of span/°C
Lead Compensation Error: < ±0.03% of span for full change
Sensor/Transmitter Power: Sensor Lead Resistance: < 50 Ω
Storage Temperature, Max: 85 °C
Storage Temperature, Min: -30 °C
Operating Temperature, Max: 70 °C
Operating Temperature, Min: -20 °C
Temperature Measurement Range: Pt100: 30 to 810°C
Zero Setting Adjustable Range: -55 to 202°C
