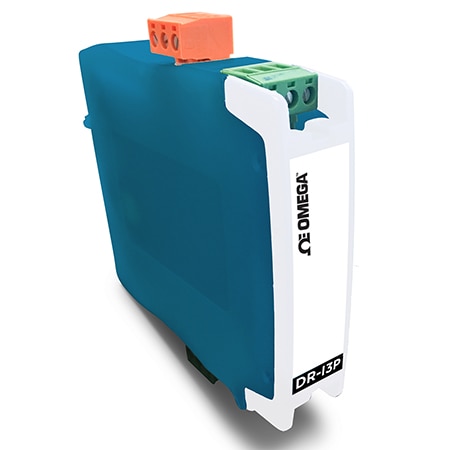

OMEGA DR-I3P ຕົວສົ່ງສະຫນັບສະຫນູນສາຍສະຫຼຸບອິດສະເລດ (Thermocouple, RTD,Thermistor, Resistance, Potentiometer, Current, Voltage, 0 to 10 Vdc, J: 0 to 1200°C, K: 0 to 1350°C, N: 0 to 1300°C , E: 0 to 900°C, T: 0 to 400°C, R: 0 to 1750°C, S: 0 to 1950°C, RTD: -200 to 700°C, TH : -50 to 90°C, 4 to 20 mA)
Width: 22.5 mm
Height: 108 mm
Length: 106 mm
Weight: 150 g
Mounting: DIN Rail 35 mm Standard
Approvals: CE, RoHS
Isolation: 2300 Veff
Materials: Polyamide V0
Input Type: Thermocouple, RTD,Thermistor, Resistance, Potentiometer, Current, Voltage
Wire Gauge: 17 to 14 AWG
Display Type: 2 Digit LCD
Warm Up Time: 15 min
Output Signal: Current, Voltage
Response Time: Step Response: 300 msec
Supply Voltage: 18 to 265 Vac /Vdc
Input Range Note: Process: 4/20 mA (active and passive, max 25 mA, Vterm<1.2 Vdc), 0/10 Vdc (max. 25 Vdc, Zin=1 MOhm);Excitation Voltage: +15 Vdc (@30 mA);Thermocouple: J, K, N, E, T, R and S (automatic compensation for the thermocouple cold junction)‘Pt’ and ‘Ni’ probes: Pt100 (2 and 3 wires, with automatic cable compensation up to 30 Ohm), Pt500, Pt1000, Ni100, Ni1000 (2 wires);‘NTC’ probes: NTC (with R25=10K, Beta=3500), NTC 44006;Resistances: ranges for 100 K, 50 K, 25 K, 5 K and 2.5 KOhms;Potentiometers: nominal from 500 Ohm up to 20 KOhm potentiometers
Number of Inputs: 7
Electrical Output: 4 to 20 mA
Enclosure Ratings: IP30
Power Consumption: max 1.5 W
Supply Power Note: 18 to 265 Vac / dc (isolated 2500 Veff) (20 to 240 Vac/dc ±10%) Overvoltage category: 2 AC frequency: 45 to 65 Hz
Supply Power Type: AC/DC
Response Time Note: 300mSec. (0% to 99% of signal)
Voltage Output Range: 0 to 10 Vdc
Electrical Connection: Screw Terminal
Temperature Stability: 150ppm/°C
Storage Temperature, Max: 70 °C
Storage Temperature, Min: -20 °C
Current Measurement Range: 4 to 20 mA
Voltage Measurement Range: 0 to 10 Vdc
Operating Temperature, Max: 50 °C
Operating Temperature, Min: 0 °C
Temperature Measurement Range: J: 0 to 1200°C, K: 0 to 1350°C, N: 0 to 1300°C , E: 0 to 900°C, T: 0 to 400°C, R: 0 to 1750°C, S: 0 to 1950°C, RTD: -200 to 700°C, TH : -50 to 90°C
