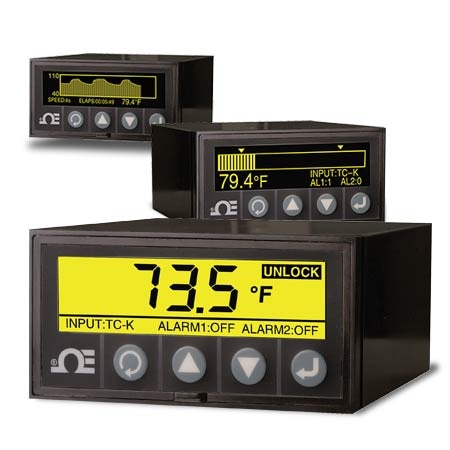

OMEGA DPI1701-USB-R ມິຕເຕີພານແບບກາຣາຟິກ ແລະ ອຸປະກອນບັນທຶກຂໍ້ມູນສໍາລັບການວັດອຸນຫະພູມ/ການວັດການປະຕິບັດ (Monochrome Backlit LED Display, 90 to 240 Vac)
Clock: Backed-up for 2 weeks when there is no main power
Width: 96 mm
Height: 48 mm
Keypad: 4 tactile feedback keys
Weight: 295 g
Display: Standard Digital, Large Digital, Horizontal bar graph, Line Graph Charting
Accuracy: ± 0.5 °C
Deadband: 0 to 100%
RTD Type: 100 Ω Pt sensor, 2- or 3-wire; α= 0.00385
Software: Runs on Windows® 7, 8*, and 10
Backlight: true
Isolation: Power to Input/Output: 3000 Vac for 1 minute Power to Relays: 2300 Vac for 1 minute
Form factor: 1/8 DIN
Display Type: Monochrome Backlit LED Display
Memory Modes: Alarm Initiated, Continuous (first-in:first-out), Delayed Start, Manual Start, stop when full
Output Detail: SPDT, 250 Vac or 30 Vdc @ 3A
Sampling Rate: 4 Hz (4 updates/second)
Wireless Band: 2.4 GHz
Data Interface: USB
Data Retention: Up to 85,000 data points with time stamping
Supply Voltage: 90 to 240 Vac
supply-voltage: 90 to 240 Vac
Logging Interval: Adjustable from 1 to 60 sec
Cutout Dimensions: 45 x 92 mm
Display Type Note: Monochrome Backlit, 240 x 64 dots
Enclosure Ratings: NEMA Type 1
Relative Humidity: 90% RH non-condensing
Supply Power Note: 90 to 240 Vac ±10%, 50 to 400 Hz
Data Interface Note: Isolated USB or RS232 (9600 baud rate, 8-bit data, no parity, 1 stop bit)
Additional Features 1: Enable/disable, high/low, latch/unlatch , Line Graph Time Speed: Adjustable from 1 to 60 sec
Sensor Break Detection: Open Thermocouple/RTD Detection - Up scale
Sensor/Transmitter Power: 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA isolated
Current Measurement Range: 0 to 20 mA
Voltage Measurement Range: 0 to 10 Vdc
Operating Temperature, Max: 50 °C
Operating Temperature, Min: 0 °C
Temperature Measurement Range: Type J: -100 to 760°C (-148 to 1400°F) ,Type K: -100 to 1260°C (-148 to 2300°F) ,Type E: -200 to 849°C (-328 to 1560°F) ,Type T: -200 to 400°C (-328 to 752°F) ,Type R & S: 100 to 1760°C (212 to 3200°F) ,RTD: -200 to 850°C
Thermocouple Lead Resistance, Max: 100 Ω
