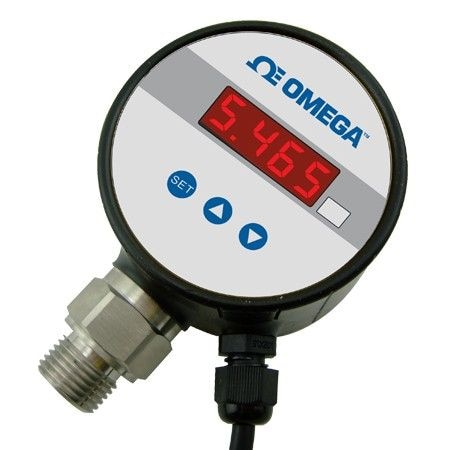

OMEGA DPG110-3.0KG ເຄື່ອງວັດຄວາມດັນດິຈິຕອນທີ່ໃຊ້ພາລະກິດ DC ສ້າງຈາກເຫຼັ້ງແບບສແຕນເລດ (Gauge, 3000 psi, NPT Male, 1/4 in, IP65)
Height: 106 mm
Length: 48 mm
Stability: ≤0.2% FS/year
Calibration: Press ▼for 5 seconds for zero calibration.Press ▲ for 5 seconds for full scale calibration
Display Type: 4 Digit LED
Accuracy Note: ± 0.25% for gauge pressure >5psi ± 0.5% FS for all others including absolute,compound gauge, and Vacuum ranges
Output Signal: Current
Pressure Type: Gauge
Pressure, Max: 3000 psi
Pressure, Min: 0 psi
Accuracy Class: < 0.1%
Burst Pressure: 4x Full Scale
Outer Diameter: 82 mm
Proof Pressure: 200% Full Scale
Supply Voltage: 12 to 30 Vdc
Number of Digits: 4
Electrical Output: 4 to 20 mA
Enclosure Ratings: IP65
Materials, Wetted: 316 Stainless Steel
Pressure Accuracy: ± 0.25 %
Relative Humidity: ≤90%
Supply Power Type: Loop Powered
Wiring/Connector Table: RED: +24VDC, Black: Ground
Process Connection Size: 1/4 in
Process Connection Type: NPT Male
Operating Temperature, Max: 80 °C
Operating Temperature, Min: -30 °C
