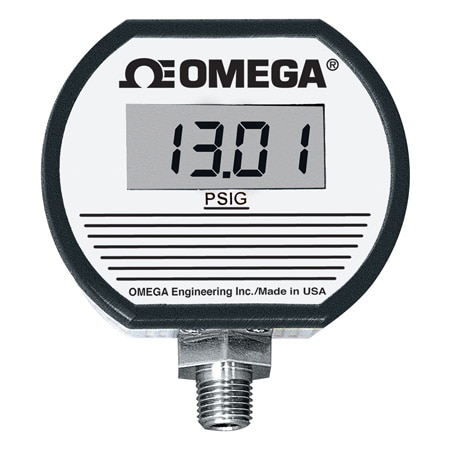

OMEGA DPG1001AD-100G ເຄື່ອງວັດຄວາມດັນດິຈິຕອນຄວາມແມ່ນຢ່າງສູງ ມີໃບຢັ້ງຢືນ NIST (Gauge, 100 psi, NPT Male, 1/4 in)
Weight: 255 g
Wire Gauge: 22 AWG
Weight Note: Approx 255 g (9 oz)
Cable Length: 0.9 m
Display Type: LCD
Accuracy Note: ± 0.10% FSO or better, ± 1 least-significant digit (includes linearity, hysteresis, repeatability); NIST certificate included
Output Signal: None
Pressure Type: Gauge
Pressure, Max: 100 psi
Pressure, Min: 0 psi
Accuracy Class: 0.1% to 0.25%
Burst Pressure: 4x Full Scale
Proof Pressure: 2x Full Scale
Supply Voltage: 9 to 32 Vdc
Number of Digits: 3.5
Cable Length Note: 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1001B)
Display Type Note: LCD, 13 mm (0.5") digit height, 3 readings per second
Electrical Output: None
Materials, Wetted: 316 Stainless Steel
Pressure Accuracy: ± 0.1 %
Supply Power Note: 8 to 24 Vac 50/60 Hz or 9 to 32 Vdc; 5 mA maxBattery Note:None
Supply Power Type: AC/DC
Number of Batteries: 2
Battery Size and Type: Alkaline AA
Controls and Location: Display zero/span, non-interactive, ± 15% range; top-accessible, multiturn potentiometers
Display Segment Height: 13 mm
Process Connection Size: 1/4 in
Process Connection Type: NPT Male
Process Temperature, Max: 70 °C
Process Temperature, Min: 0 °C
Storage Temperature, Max: 95 °C
Storage Temperature, Min: -55 °C
Operating Temperature, Max: 85 °C
Operating Temperature, Min: -20 °C
