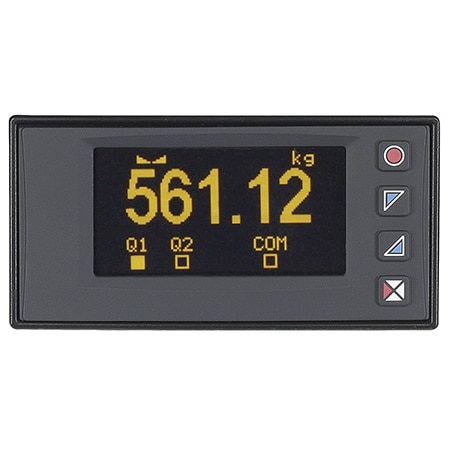

OMEGA DP400S ເຄື່ອງວັດແບນແລະແຮງດຶງຄວາມໄວສູງ, ມີຟັງຊັນ NFC (Strain, Strain, 1/8 DIN, 24 to 230 Vac/Vdc)
Width: 3.7 in
Height: 1.8 in
Weight: 165 g
Materials: Polycarbonate
Input Type: Strain
Form factor: 1/8 DIN
Display Note: Backlighting graphic OLED 2.42’’ (DP400S), Yellow display 128 x 64 pixel
Display Type: OLED
Output Detail: Analog Output: Config. as 0..20mA or 4..20mA, Resolution 16bit +/-0.2% ( F.s.), Relay outputs: 2 Relays, Contacts 2A - 250 Vac.Resistive charge.
Output Signal: Current, Voltage
Sampling Rate: 1200 Hz
Control Output: Relay
Data Interface: RS485
Supply Voltage: 24 to 230 Vac/Vdc
Impedance Input: >1 MΩ
Calibration Note: Calibration with 2-points sampling value, Calibration on full-scale % value, Calibration value mV/V
Measurement Type: Strain
Number of Inputs: 1
Number of Relays: 2
Cutout Dimensions: 1.772 x 3.6 in
Enclosure Ratings: IP54
Power Consumption: 8 VA
Relative Humidity: 35 ~ 95RH% (non condensing)
Supply Power Note: Extended power supply range 24..230 Vac/Vdc ± 15% 50/60 Hz
Supply Power Type: AC/DC
Data Interface Note: Serial connectivity relies on RS485 and Modbus-RTU protocol.
Internal Resolution: 16 bit
Electrical Connection: Removable Screw Terminal
Operating Temperature, Max: 40 °C
Operating Temperature, Min: 0 °C
