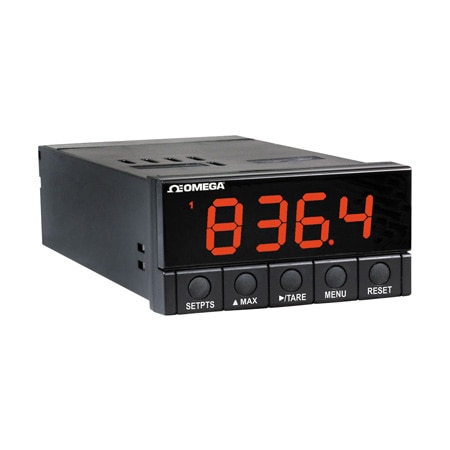

OMEGA DP25B-S-DC10/32-AI-R ເຄື່ອງວັດຄວາມຕື່ນແຮງແລະການປະມວນຜົນມີຈໍສີຂະໜາດໃຫຍ່ ເລືອກໄດ້ (Strain, Current, Voltage, 1/8 DIN, 10 to 32 Vdc)
CMRR: 120 dB
NMRR: 60 dB
Width: 3.78 in
Height: 1.89 in
Length: 6 in
Weight: 36 g
Accuracy: ± 0.02 %
Mounting: Panel
Polarity: Automatic
Approvals: CE, EMC 2014/30/EU
Isolation: Dielectric strength to 2500V transient per 3 mm spacing based on EN 61010 for 260 Vrms or Vdc
Materials: Polycarbonate
Input Type: Strain
Protection: 240 Vrms max for voltage input ranges; 200 mA for current ranges
Form factor: 1/8 DIN
Display Note: 4-digit, 9-segment, 21 mm (0.83") red, amber or green LED (programmable)
Display Type: LED
Reading Rate: 3/sec
Warm Up Time: 30 min
Output Detail: Analog Outputs: 0 to 10V, 4 to 20 mA or 0 to 20 mA; can be assigned to a display range (scalable) or proportional control output with setpoint #1 when used as a control output, Isolation: 130 Vrms working voltage, 1000 V/60sec Dielectric test
Output Signal: Current, Isolated Voltage
Sampling Rate: 3 Hz (3 updates/second)
Step Response: 2 s
Control Output: N/A
Supply Voltage: 10 to 32 Vdc
Impedance Input: 100 MΩ for 100 mV or ± 50 mV range; 1 MΩ for 10V or ± 5V range; 5 Ω for 20 mA current input
Input Range Note: 0 to 100 mV, ± 50 mV, 0 to 10V, ± 5V, 0 to 20 mA, 4 to 20 mA
Measurement Type: Current, Voltage
Number of Digits: 4
Number of Inputs: 1
Cutout Dimensions: 1.772 x 3.622 in
Power Consumption: 11 W
Relative Humidity: 90% @ 40°C non-condensing
Sensor Excitation: 24 Vdc @ 25 mA or 12V @ 50 mA; 10V @ 120 mA or 5V @ 60 mA
Supply Power Note: 240 Vrms overvoltage protection
Supply Power Type: DC
Internal Resolution: 15 bit
Max Error Strain/Process: ± 0.03%
Storage Temperature, Max: 85 °C
Storage Temperature, Min: -40 °C
Operating Temperature, Max: 50 °C
Operating Temperature, Min: 0 °C
Analog-to-Digital Technique: Dual slope
Span Temperature Coefficient: ± 50 ppm/°C
