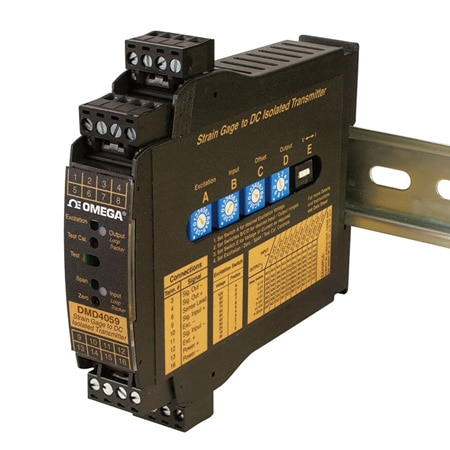

OMEGA DMD4059 ອຸປະກອນສະຫຼຸບສະພາບ DIN Rail ແປງຂໍ້ມູນຂາເຂົ້າ Bridge ເປັນ mA ຫຼື ໄຟຟ້າ (Voltage, 0 to 400 mV)
CMRR: 100 db min
Width: 22.5 mm
Height: 117 mm
Length: 122 mm
Offset: Zero Offset (Tare): ± 100% of span in 15 % increments
Weight: 159 g
Mounting: DIN Rail 35 mm Standard
Isolation: 1200 Vrms minimum, 3-way isolation, power to input, power to output and input to output
Linearity: Output Linearity, Ripple and Noise: Better than ±0.1% of span, <10 mV rms ripple and noise
Stability: ±0.01% per °C, Thermal: Better than ±0.02% of span per °C
Input Type: Voltage
Wire Gauge: 14 AWG
Adjustments: ±5% Via Multi-Turn Potentiometer
Output Value: Process
Output Detail: Output Ranges: Voltage (10 mA max): 0-1 to 0-10 Vdc Bipolar Voltage (10 mA max): ±5 or ±10 Vdc Current: 0-2 mA to 0-25 mA Compliance, Drive @ 20 mA: 20V, 1000 Ω drive;current output can be selectively wired for sink or source Function Test Button: Sets output to test level when pressed. Adjustable 0 to 100% of span via potentiometer. Factory default is approx 50% of span Maximum Output: 10 Vdc @ 120 mA
Output Ripple: Better than ±0.1% of span, <10 mV rms ripple and noise
Output Signal: Current, Voltage
Response Time: 70 ms typical
Supply Voltage: 80 to 265 Vac, 85 to 300 Vdc
Impedance Input: 200 kΩ typical
Input Range Note: Input Range: 100 to 10,000 Ω bridges @ 10 Vdc, drives up to four 350 Ω bridges @ 10 Vdc;Minimum: 0 to 5 mV range, 0.5 mV/V sensitivity;Maximum: 0 to 400 mV range, 40 mV/V sensitivity
Number of Inputs: 1
Electrical Output: 0 to 25 mA
Enclosure Ratings: IP40
Power Consumption: 2 to 5 W
Supply Power Note: 80 to 265 Vac, 50/60 Hz or 85 to 300 Vdc, 2 W maximum
Supply Power Type: AC/DC
Excitation Voltage: Selectable 0 to 10 Vdc
Resistance Accuracy: Better than ±0.01% per 1 Ω change in leadwire resistance
Voltage Output Range: 0 to 10 Vdc
Additional Features 1: Standard Voltage isolated
Electrical Connection: Screw Terminal
Temperature Stability: ±0.01% per/°C; Better than ±0.02% of span per °C
Sensor/Transmitter Power: Up to 4- 350 Ω bridges @ 10 Vdc
Voltage Measurement Range: 0 to 400 mV
Operating Temperature, Max: 60 °C
Operating Temperature, Min: -10 °C
