Height: 0 in

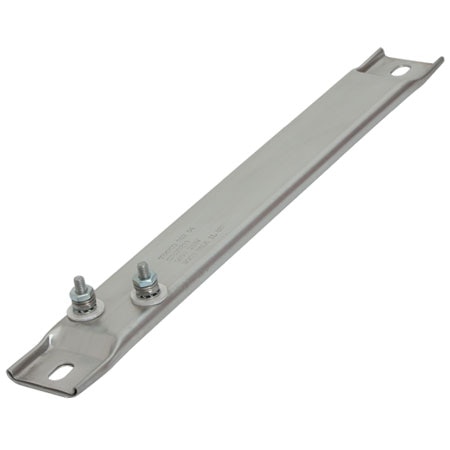

Form factor: Strip
Termination: Terminals parallel on one side
Applications: Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds
Current, Max: Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp
Heater Power: 500 W
Strip Length: 9 in
Voltage Note: 480 Vac (when applicable)
Voltage, Max: 480 Vac
Power Density: 20 W/in²
Supply Voltage: 240 Vac
Power Tolerance: 5%, -10%
Sheath Material: 304 Stainless Steel
Mounting Slot Size: 8 mm x 13 mm
Power Density, Max: 45 W/in²
Power Density, Min: 31 W/in²
Resistance Tolerance: 10%, -5%
Special Bushings Size: 13 mm x 16 mm
Sheath Temperature, Max: 650 °C
Number of Mounting Holes: 2
Physical Size Construction Limitations: Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8"
