CMRR: 120 dB
Height: 108 mm
Length: 230 mm
Weight: 1.13 kg
Accuracy: Selectable
Polarity: Bipolar
RTD Type: 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392
Input Type: Thermocouple, RTD, Thermistor, mA, Voltage, Strain
Resolution: 1°/0.1°; 10 µV process

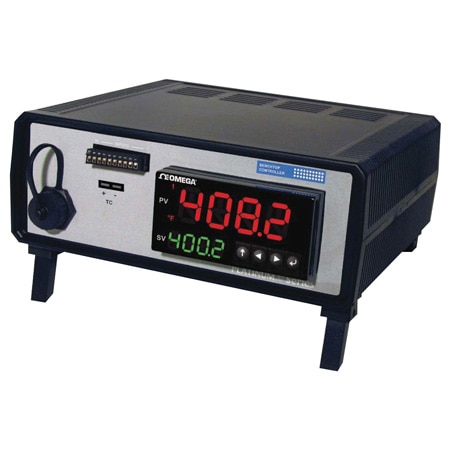

Form factor: Benchtop
Current, Max: 4 to 20 mA
Display Type: 6 Digit LED
Accuracy Note: Process/Strain (Process Voltage): 0.03% FS,Process (Process Current ) : 0.03% FS,Type J (Iron-Constantan) : 0.4°C,Type K (CHROMEGA®-ALOMEGA® ) :1.0°C, 0.4°C,Type T (Copper-Constantan ) :1.0°C,0.4°C,Type E (CHROMEGA-Constantan ) :1.0°C ,0.4°C,Type R (Pt/13%Rh-Pt ) :1.0°C, 0.5°C,Type S (Pt/10%Rh-Pt ) :1.0°C,0.5°C,Type B (30%Rh-Pt/6%Rh-Pt ) :1.0°C,0.5°,Type C (5%Re-W/26%Re-W ) : 0.4°C,Type N (Nicrosil-Nisil ) :1.0°C ,0.4°,RTD (Pt, 0.00385, 100Ω, 500Ω, 1000Ω ): 0.3°C,RTD (Pt, 0.003916, 100Ω ): 0.3°C,RTD (Pt, 0.00392, 100Ω ): 0.3°,Thermistor (2252Ω) : 0.2°C,Thermistor (5K Ω) : 0.2°C,Thermistor (10K Ω) : 0.2°C
Input Voltage: -100 to 100 mV, -1 to 1 Vdc, 0 to 10 Vdc
Output Detail: SSR, Relay, Analog;5A SSR (internal), 3A relay max, analog process output
Output Signal: Current, Voltage
Ramp and Soak: Profiling
Sampling Rate: 20 Hz (20 updates/second)
A/D Conversion: Dual Slope
Control Output: SSR Relay
Data Interface: USB
Digital Filter: Programmable
Supply Voltage: Selectable to 5, 10, 12, 24 Vdc @ 25 mA
Measuring Range: "Process/Strain (Process Voltage):± 50 mV, ± 100 mV, ± 1 Vdc, ± 10 Vdc, Process (Process Current ) : Scalable within 0 to 24 mA, Type J (Iron-Constantan) : -210 to 1200°C, Type K (CHROMEGA®-ALOMEGA® ) :-270 to -160°C,-160 to 1372°C, Type T (Copper-Constantan ) :-270 to -190°C,-190 to 400°C, Type E (CHROMEGA-Constantan ) :-270 to -220°C,-220 to 1000°C, Type R (Pt/13%Rh-Pt ) :-50 to 40°C,40 to 1788°C, Type S (Pt/10%Rh-Pt ) :-50 to 100°C,100 to 1768°C, Type B (30%Rh-Pt/6%Rh-Pt ) :1100 to 640°C,640 to 1820°C, Type C (5%Re-W/26%Re-W ) :0 to 2320°C, Type N (Nicrosil-Nisil ) :-250 to -100°C°,-100 to 1300°C, RTD (Pt, 0.00385, 100Ω, 500Ω, 1000Ω ):-200 to 850°C, RTD (Pt, 0.003916, 100Ω ): -200 to 660°C, RTD (Pt, 0.00392, 100Ω ): -200 to 660°C, Thermistor (2252Ω) : -40 to 120°C, Thermistor (5K Ω) :-30 to 140°C, Thermistor (10K Ω) : -20 to 150°C
Thermistor Type: 2252 Ω, 5K Ω, 10K Ω
Measurement Type: Current, Strain, Temperature, Voltage
Number of Inputs: 1
Decimal Selection: 0,001, 0,01, 0,1, None
Display Type Note: 4 or 6-digit, 9-segment LED with size 21 mm (83") and 10.2 mm (40"); RED, GREEN, and AMBER, and programmable colors for process variable, and temperature units
Power Consumption: 6 W
Supply Power Type: AC
Thermocouple Type: J, K, T, E, R, S, B, C, N, L
Data Interface Note: Ethernet: IEEE 802.3 10/100 Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS485: Selectable from menu; both ASCII and Modbus protocol selectable from menu; programmable 1200 to 115K baud; complete programmable setup capability; program to transmit current display, alarm status, min/max, actual measured input value and status
Input Configuration: Differential
Temperature Stability: Temperature Stability:RTD: 0.04°C/°C;Thermocouple: 25°C (77°F); coldjunction compensation of 0.05°C/°C;Process: 50 ppm/°C
Number of Control Outputs: 2
