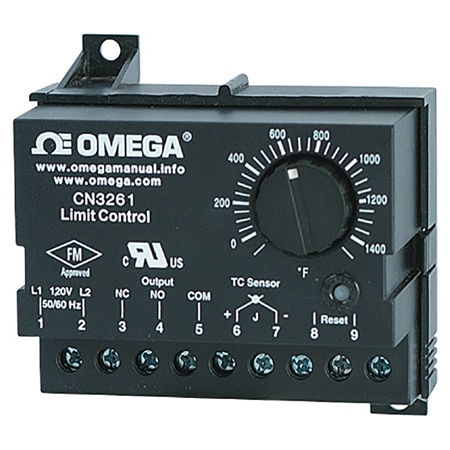

OMEGA CN3261-RTDF ຕົວຄວບຄຸມອຸນຫະພູມອນາລອກຂັ້ນສູງມີການຕິດຕັ້ງບົດລະດັບ DIN (RTD, ± 3 %, None)
Width: 84 mm
Height: 76 mm
Length: 64 mm
Accuracy: ± 3 %
Mounting: 35 mm DIN Rail or Surface Mounting
Stability: Typically less than ±5µV/°F ambient and 0.1% of SPAN/% rated line voltage
Input Type: RTD
Form factor: DIN Rail
Control Type: Latching with manual reset or power-off
Display Type: None
Accuracy Note: ±3% FS maximum at 25°C and rated line voltage
DIN Rail Size: 35 mm
Output Detail: SPDT relay rated 3.8 A resistance and 1.5 A pilot duty 120 Vac, 100,000 cycles
Control Output: 3 A SPDT Relay
Supply Voltage: 120 Vac
Dimensions Note: 76 H x 84 W x 64 mm D (3.0 x 3.3 x 2.5") [overall 84 mm H (3.31") for mounting]
Measuring Range: -18 to 454°C
Noise Rejection: Common Mode Noise Rejection: 60 db,Series Mode Noise Rejection: 120 db
Number of Inputs: 1
Number of Outputs: 1
Power Consumption: 3 VA
Supply Power Note: 120 Vac or optional 24 Vac ±15%, 50/60 Hz, 3 VA maximum standard
Supply Power Type: AC
Enclosure Material: Noryl
Set Point Adjustment: Adjustable Knobs
Additional Features 1: Remote Reset, °F
Electrical Connection: Screw Terminal
Sensor Break Protection: Contacts 4 and 5 open for thermocouple or RTD break
Temperature Sensor Type: RTD
Operating Temperature, Max: 60 °C
Operating Temperature, Min: 0 °C
