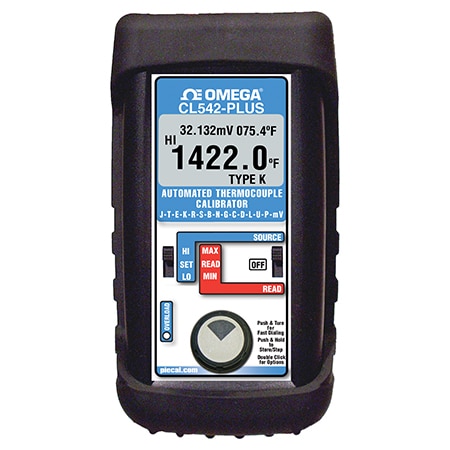

OMEGA CL542-PLUS ປະເພດ Thermocouple 13 ແລະ ອຸປະກອນປັບຄ່າ Millivolt
Width: 76.2 mm
Height: 40.64 mm
Length: 143 mm
Weight: 12.1 oz
Accuracy: ± 0.008 %
Weight Note: 12.1 ounces (including boot and batteries)
Battery life: 50 hr, low battery warning with less than 1 hr operation left
Display Type: LCD
Voltage Read: Input Impedance: > 10 Megohms Open Thermocouple Threshold: 10,000 Ω nominal Pulse: <10 microamp pulse for 300 milliseconds Normal Mode Rejection: 50/60 Hz, 50 dB Common Mode Rejection: 50/60 Hz, 120 dB
Accuracy Note: ± (0.008% of Reading + 0.006 mV)
Supply Voltage: 1.5 Vdc
Voltage Source: Output Impedance: < 0.3 Ω Source Current: > 20 mA (drives 80 mV into 10 Ω) Noise: ≤4 microvolts p-p for frequencies of 10 Hz or below
Display Type Note: High contrast graphic liquid crystal display, LED backlighting for use in low lit areas
Thermocouple Type: J, K, T, E, R, S, B, C, N, L, G, U, D
Additional Features 1: Read & Source Signals
Relative Humidity Note: 10% ≤RH ≤90% (0 to 35°C), non-condensing; 10% ≤RH ≤70% (35 to 60°C), non-condensing
Relative Humidity, Max: 0.9
Relative Humidity, Min: 10%
Cold Junction Compensation: ± 0.16°F
Operating Temperature, Max: 60 °C
Operating Temperature, Min: -25 °C
