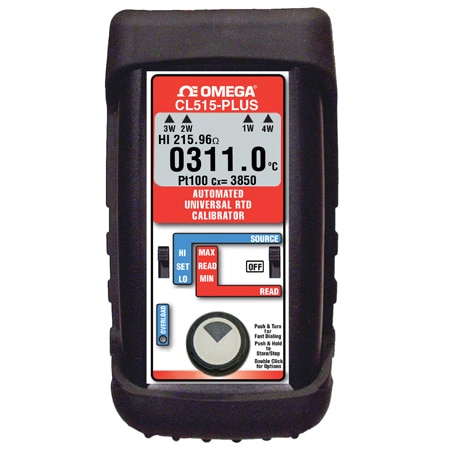

OMEGA CL515-PLUS ອຸປະກອນສະແດງຜົນ RTD ຄວາມແມ່ນຢ່າງສູງ ອັດຕະໂນມັດເຊື່ອມຕໍ່ ຕົວປັບຄ່າແລະເຄື່ອງວັດອຸນຫະພູມ
Width: 76 mm
Height: 41 mm
Length: 143 mm
Weight: 0.34 kg
Accuracy: ± 0.015 %
Weight Note: 0.34 kg (12.1 oz) including boot and batteries
Battery life: 50 hr
Display Type: LCD
Voltage Read: Excitation: Current 0.5 mA nominal Normal Mode Rejection: 50/60 Hz, 50 dB Common Mode Rejection: 50/60 Hz, 120 dB
Accuracy Note: ± (0.015% of reading + 0.05 Ω)
Supply Voltage: 6 Vdc
Voltage Source: Accuracy: From 1 to 10.2 mA external excitation Current ± (0.015% of Reading + 0.05 Ω) Below: 1 mA of external excitation Current: ± (0.015% of reading + 0.025 mV/mA excitation current + 0.05 Ω) Resistance Ranges: 0.00 to 410.00, 410.1 to 4001.0 Ω Allowable Excitation Current Range <41Ω: 10.2 mA maximum; steady or pulsed/intermittent 410 to 4001Ω: 1 mA maximum; steady or pulsed/intermittent Pulsed Excitation: Current compatibility DC to 0.01 second pulse width 0.025 mV
Display Type Note: High contrast graphic liquid crystal display, LED backlighting for use in low lit areas
Temperature Drift: ± 0.01%
Thermocouple Type: None
Type of RTD Signal: 100 Ω
Additional Features 1: Source Only
Relative Humidity Note: 10% ≤RH ≤90% (0 to 35°C), non-condensing 10% ≤RH≤ 70% (35 to 60°C), non-condensing, Nominal Relative Humidity: 70%
Relative Humidity, Max: 0.9
Relative Humidity, Min: 10%
Temperature Drift Note: ± 0.01% of span outside of 23°C ± 10°C (73°C ± 18°F)
Operating Temperature Note: Nominal Temperature: 23°C
Operating Temperature, Max: 60 °C
Operating Temperature, Min: -25 °C
