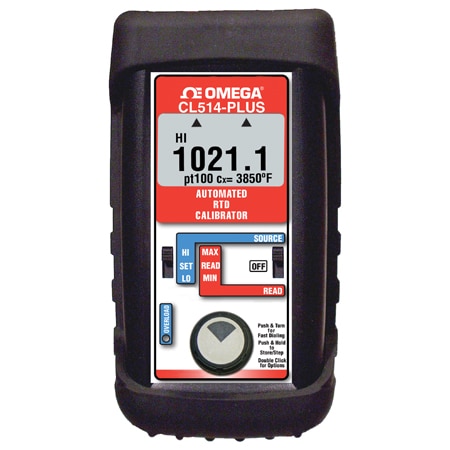

OMEGA CL514-PLUS ອຸປະກອນສະແດງຜົນການຕໍ່ຕໍ່ອັດຕະໂນມັດ 4 ສາຍ RTD ແລະ ເຄື່ອງວັດອຸນຫະພູມ
Width: 76.2 mm
Height: 40.64 mm
Length: 143 mm
Weight: 12.1 oz
Accuracy: ± 0.025 %
Protection: Over-voltage protection to 60 V dc (rated for 30 seconds) (Protection against misconnection)
Weight Note: 12.1 oz (including boot and batteries)
Battery life: 50 hr
Display Type: LCD
Voltage Read: Excitation Current: 0.5 mA nominal Normal Mode Rejection: 50/60 Hz, 50 dB Common Mode Rejection: 50/60 Hz, 120 dB
Accuracy Note: ± (0.025% of reading + 0.05 Ω)
Supply Voltage: 1.5 Vdc
Voltage Source: Accuracy From 1 to 10.2 mA External Excitation Current: ± (0.025% of Reading + 0.05 Ω) Below 1 mA of External Excitation Current: ± (0.025% of Reading + 0.025 mV/ mA Excitation Current + 0.05 Ω) Resistance Ranges: 0.00 to 410.00, 410.1 to 2001.0 Ω Allowable Excitation Current Range: <410 Ω: 10.2 mA max; steady or pulsed/intermittent 410 to 2001 Ω: 1 mA max; steady or pulsed/intermittent Pulsed Excitation Current Compatibility: DC to 0.01 second pulse width
Display Type Note: High contrast graphic liquid crystal display, LED backlighting for use in low lit areas
Temperature Drift: ± 0.01%
Thermocouple Type: None
Battery Indication: A low battery indication is displayed when the battery voltage drops below the operating level
Type of RTD Signal: 100 Ω, 1000 Ω
Additional Features 1: Read & Source Signals
Relative Humidity Note: 10% ≤RH ≤90% (0 to 35°C), non-condensing 10% ≤RH≤ 70% (35 to 60°C), non-condensing, Nominal Relative Humidity: 70%
Relative Humidity, Max: 0.9
Relative Humidity, Min: 10%
Temperature Drift Note: ± 0.01% of span outside of 23°C ± 10°C (73°C ± 18°F
Operating Temperature Note: Nominal Temperature: 23°C
Operating Temperature, Max: 60 °C
Operating Temperature, Min: -25 °C
