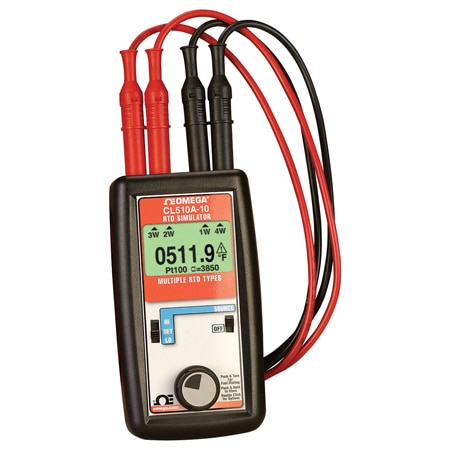

OMEGA CL510A-10 ຕົວຈຳລອງ PT100 & PT1000 RTD ມີເສັ້ນກັບຫຼາຍຫຼືເສັ້ນກັບເລືອກເອົາເອງ
Width: 69 mm
Height: 45 mm
Length: 126 mm
Weight: 0.24 kg
Accuracy: ± 0.015 %
Weight Note: 0.24 kg (8.4 oz) (including batteries)
Battery life: 50 hr
Display Type: LCD
Accuracy Note: ± (0.015% of reading + 0.05 Ω)
Supply Voltage: 6 Vdc
Voltage Source: Accuracy: From 1 to 10.2 mA External Excitation Current: ± (0.015% of rdg + 0.05 Ω) Below 1 mA of External Excitation Current: ± (0.015% of rdg + 0.01 mV/mA excitation current + 0.05 Ω) Resistance Ranges: 0.00 to 410.00, 410.1 to 4001.0 Ω Allowable Excitation Current Range, Steady or Pulsed/Intermittent: <410 Ω: 10.2 mA max 410 to 001 Ω: 1 mA max Pulsed Excitation Current Compatibility: DC to 0.01 second pulse width
Display Type Note: High contrast graphic liquid crystal display, LED backlighting for use in low lit areas
Temperature Drift: ± 0.05 Ω/°C
Battery Indication: A low battery indication is displayed when the battery voltage drops below the operating level
Type of RTD Signal: 100 Ω, 1000 Ω
Additional Features 1: Supports 10 RTD curve
Relative Humidity Note: Relative Humidity Range, 10% ≤RH: ≤90%: 0 to 35°C (32 to 95°F), non-condensing ≤70%: 35 to 60°C (95 to 140°F), non-condensing
Relative Humidity, Max: 0.9
Relative Humidity, Min: 10%
Over-Voltage Protection: Over-voltage protection to 60 Vdc (rated for 30 sec)
Operating Temperature, Max: 60 °C
Operating Temperature, Min: -25 °C
