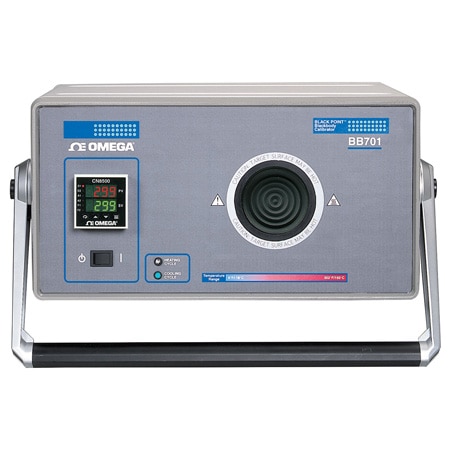

OMEGA BB701 -18 °C ຫາ 149 °C ອຸນຫະພູມ Blackbody Calibrator
Width: 35.5 mm
Height: 19.5 mm
Length: 36.5 mm
Weight: 12.7 kg
Accuracy: ± 0.8 °C (± 1.44 °F)
Frequency: 50/60 Hz
Stability: ± 0.6°C
Target Size: 63.5
Control Mode: PID Control
Display Type: LED
RTD Accuracy: ± 0.375 °C
Warm Up Time: 5 min
Accuracy Note: ±0.8°C +1 digit (±1.4°F ) (worst case), ±0.3°C (±0.6°F) [over entire scale]
Cool-Down Time: 5 m
Data Interface: RS232
Stability Note: ± 0.6°C (± 1.2°F) or less
Supply Voltage: 115 Vac
supply-voltage: 115 Vac
Cavity Emissivity: 0.95
Power Consumption: 175 W
Warm-Up Time Note: 5 min, from ambient to 149°C (300°F)
Cool-Down Time Note: 5 min, from ambient to -18°C (0°F)
Additional Features 1: Portable
Installation Category: II
Internal Sensing Element: Platinum RTD, 100 Ω, 0.00385
Process Temperature, Max: 149 °C
Process Temperature, Min: -18 °C
Operating Temperature Note: 4.4 to 29.4°C (40 to 85°F) [target plate reaches 0°F]; 4.4 to 43°C (40 to 110°F) [target plate reaches 11.8°F]
Operating Temperature, Max: 43 °C
Operating Temperature, Min: 4.4 °C
Calibration Reference Sensor: Platinum RTD, 100 Ω, 0.00385
