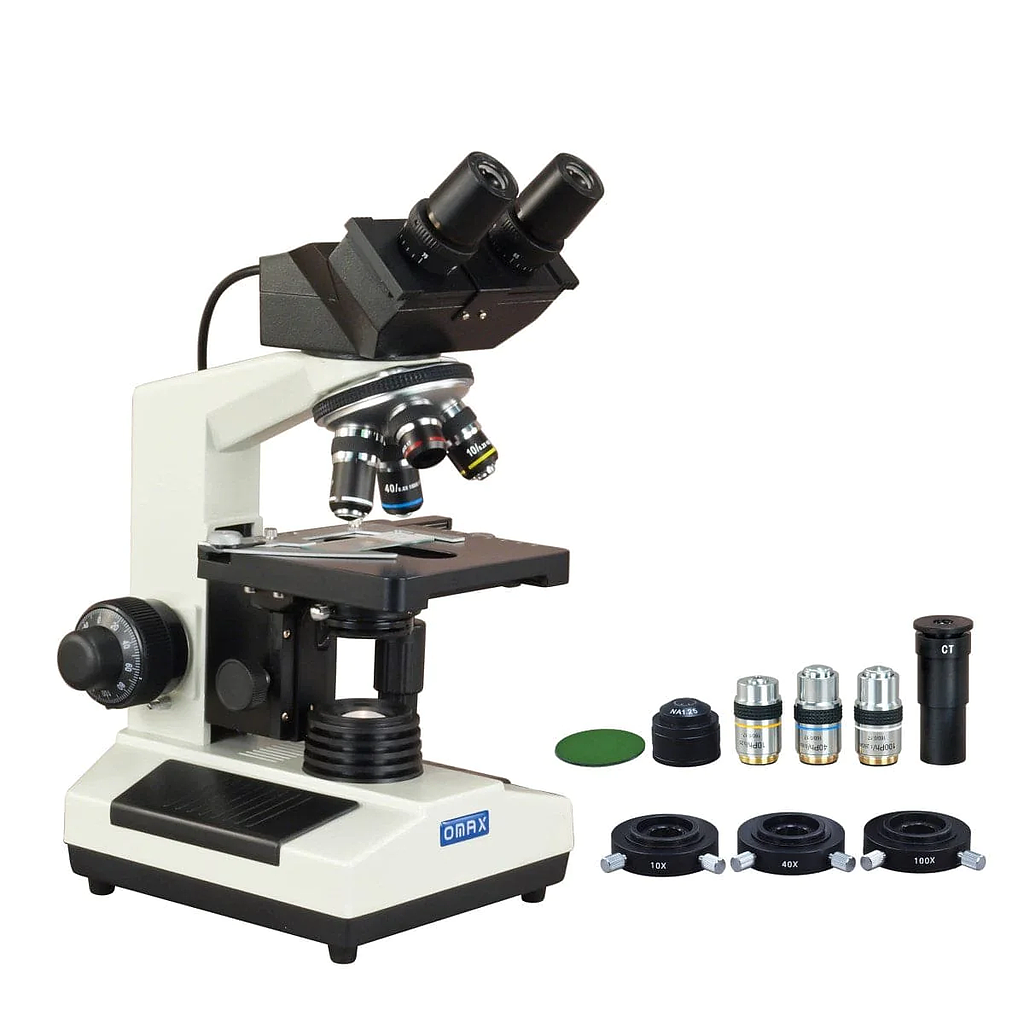

OMAX MD827S30-PHD ກ້ອງດິຈິຕອລ ກ້ອງຈຸລະທັດປະສົມປະສານ (4X~100X)

Eyepieces: wide field WF10X/18 and WF20X

Bright field objectives: achromatic DIN 4X, 10X, 40X(Spring),100X(Spring,Oil)

Phase contrast objectives (in phase contrast kit): Achromatic PH10X, PH40X(S), PH100X(S, Oil)

Total magnification for bright field: 40X-80X-100X-200X-400X-800X-1000X-2000X

Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X

Head: black, digital 45°Inclined 360°swiveling binocular

Built-in 2048x1536 pixel (3.0MP) USB high resolution digital camera

Sliding adjustable interpupillary distance: 2-3/16" ~ 2-15/16"(55~75mm)

Ocular diopter adjustable on both eyetubes

Nosepiece: revolving quadruple

Focus adjustment: Coaxial coarse & fine knobs on both sides

Focusing knob can be locked for observation & transportation

Rubber cover on the fine focus knob

Condenser & diaphragm: NA1.25 Abbe condenser with iris aperture diaphragm

Phase contrast condenser with 3 built-in condenser annular plate: one bright field NA1.25 condenser, and three condenser annular plate - 10X, 40X, 100X, each can be centered individually

Stage: mechanical double layer size 5-1/2" x 5-1/2" (140mm x 140mm)

Stage x-y stroke (travel range): 3" x 2" (75mm x 50mm)

Black palm rest on the base

Transmitted (lower) illuminator: 6V/20W halogen, intensity adjustable

Power supply: AC 100V~240V 0.2/0.1A 50/60Hz worldwide range (US and Canada plug)

Size of microscope : 7-7/8 " x 10-1/4" x 15-3/8" (20cm x 26cm x 39cm)

Size of phase contrast kit: 10-7/8" x 7-1/16" x 5-3/4" (26.5cm x18 cm x14.5 cm)

Net weight of microscope: 12 lbs (5.45 kg)

Net weight of phase contrast kit: 3 lbs 9 oz (1.62 kg)
