Test Range: 1- 6000 mm
Velocity: 1000 – 15000 m/s in steps 1, 10,100,1000 m/s
Angle probe: 0 – 90 0
Delay: 0 – 9999 mm depending on the set PRF value
Gain: 0-100 dB in steps 0.1, 0.5, 1, 10
Rejection: 0 – 80 % FSH
Rectification: Full wave, positive half wave, negative half wave, RF
Receiver bandwidth: 0.4-20 MHz (- 3 dB)
Digital Frequency: 0.4, 1, 1.25, 2, 2.5, 3, 4, 5, 6, 7, 8, 10, 15 MHz
Test Modes: Pulse echo and transmit/receive.
Connectors: BNC
Measurement Gates:
+ 2 fully independent three-level gates for amplitude and TOFD measurement.
+ Special gate of Automatic gain control (AGC)
Result display: A-scan, B-scan, simultaneous of up to 5 measured parameters selected by the user.
DAC/TCG
+ Number of points is 32.
+ Building TCG curve by DAC
DGS
+ automatic building of curve for different equivalent diameters
+ calibration at calibration blocks and testing objects.
+ building DGS curve by DAC.
Internal memory: Micro SD card 8 Gb is used for saving the testing setups and testing results

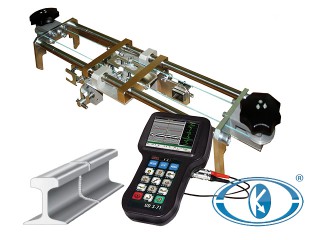

Tandem Technique: Special Test-Rig for tandem technique is provided for the Rail weld joint examination.
Probe: Complete set of probes are provided for the Rail weld examination.
Display dimension (WxH, diagonal): 70 mm x 50 mm
Weight: 0.8 kg
Overall dimensions (HxWxL): 200x100x110 mm
