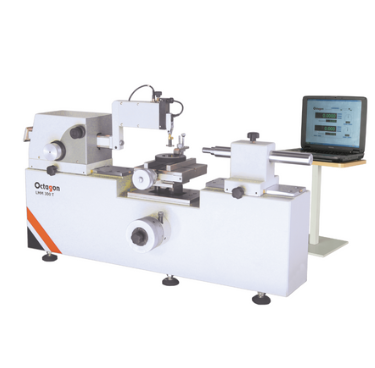

Octagon LMM 400 ເຄື່ອງວັດແທກຄວາມຍາວສາກົນ (400mm, 0.5+ L/1000µm)
Measuring Range
Absolute: 100 mm
Differential: 400 mm
Application Range
External Plain: 0-400 mm
Internal Plain: 3 to 300 mm
Cylindrical Thread External (d2) (Pitch: 0.2 - 6 mm): 1 - 350 mm
Cylindrical Thread Internal (D2) (Pitch: 0.5 - 6 mm): 3 - 300 mm
Gear External (MdK): 7 - 300 mm
Gear Internal (MdK): 30 - 300 mm
Measuring Instruments
Dial Indicators, Dial test indicators, Cylinder bore gauges: up to 100 mm
Internal Micrometer - 2 point: 400 mm
External Micrometer: 150 mm
Performance data
X axis resolution: 0.1 pm
Measurement uncertainty: 0,5+ L/1000µm
Measuring force: 0.2 N.2N
Work Table /Vertical Axis
Work table dimension: 160X160 mm
Height adjustment: 75 mm
Resolution: 0.1 pm
Float: 20 mm
Rotation: ±1.5°
Tilt: ±1.5°
Load Capacity: 15 kg
Dimensions, weight and operational conditions
LxWxH: 850 X 250 X 470 mm
Weight (kg): 70 kg
Power supply: 230 VAC, 50 Hz
Display System: DRO/PC based
