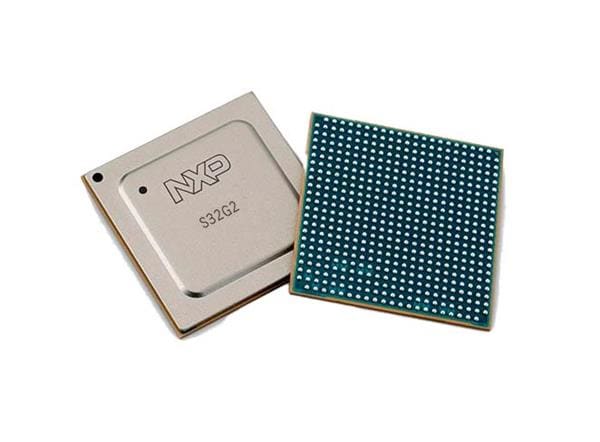

NXP S32G274AABK1VUCR ມາງຄຣໂປເຊດເຊີ - MPU S32G274A Arm Cortex-M7 ແລະ -A53, HSE, LLCE, PFE, PCIe, 20x CAN FD, 4x GbE - ຕົວປະມວນເຄືອຂ່າຍລົດຍນທີ່

Core: ARM Cortex A53, ARM Cortex M7

Memory Type: DDR3L DRAM, LPDDR4 DRAM

Data RAM Size: 8 MB

Interface Type: ADC, CAN, CAN FD, Ethernet, FlexRay, I2C, LINFlexD, PCIe, PWM, SPI, UART, USB 2.0 OTG

Mounting Style: SMD/SMT

Number of Cores: 7 Core

Watchdog Timers: No Watchdog Timer

Instruction Type: Floating Point

Processor Series: S32G2

Moisture Sensitive: Yes

L1 Cache Data Memory: 3 x 32 kB, 4 x 32 kB

Maximum Clock Frequency: 400 MHz, 1 GHz

Operating Supply Voltage: 720 mV to 870 mV

L1 Cache Instruction Memory: 3 x 32 kB, 4 x 32 kB

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

L2 Cache Instruction / Data Memory: 4 x 512 kB
