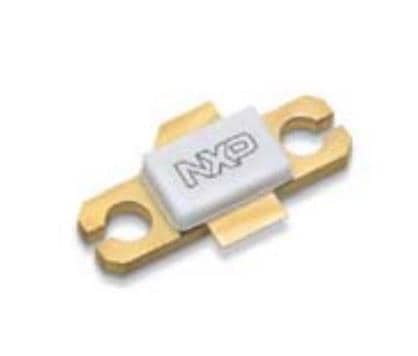

NXP MMRF5014HR5 ອເພວເອັສຟີອີທີພວດ MOSFET ພະລັງງານ RF 1-2690 MHz 125 W CW 50 V

Technology: GaN-on-SiC

Unit Weight: 3.395 g

Output Power: 125 W

Mounting Style: Screw Mount

Number of Channels: 1 Channel

Vgs - Gate-Source Voltage: - 8 V

Maximum Operating Frequency: 2.7 GHz

Minimum Operating Frequency: 1 MHz

Id - Continuous Drain Current: 350 mA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Vds - Drain-Source Breakdown Voltage: 125 V

Vgs th - Gate-Source Threshold Voltage: - 2.9 V
