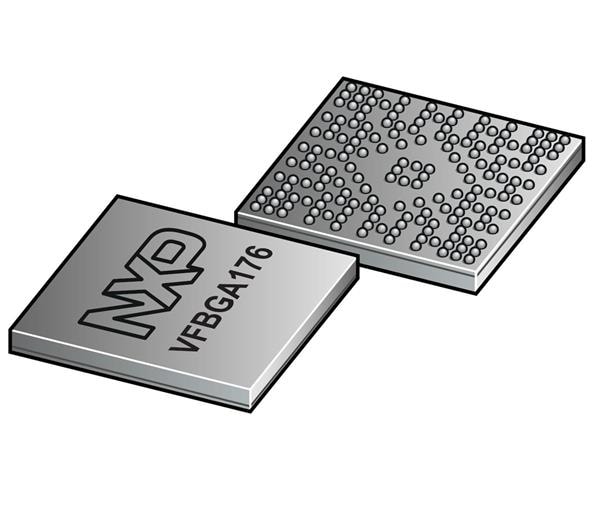

NXP MIMXRT685SFVKB MCU+DSP+FPUs i.MXRT600, 176VFBGA

Core: ARM Cortex M33, Tensilica HiFi4 DSP

Unit Weight: 190.100 mg

Data RAM Size: 4.5 MB

Data RAM Type: SRAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: I2C, I2S, MIPI-I3C, SPI, UART, USB

Mounting Style: SMD/SMT

Number of I/Os: 96 I/O

Watchdog Timers: Watchdog Timer, Windowed

Processor Series: i.MX RT600

Moisture Sensitive: Yes

Program Memory Size: 0 B

Supply Voltage - Max: 1.89 V

Supply Voltage - Min: 1.71 V

Analog Supply Voltage: 1.71 V to 3.6 V

Number of ADC Channels: 12 Channel

Maximum Clock Frequency: 300 MHz, 600 MHz

Number of Timers/Counters: 7 Timer

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
