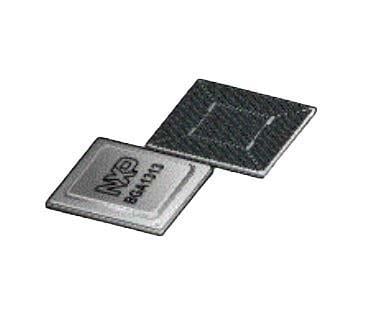

NXP MIMX8QM6AVUFEAB ຕົວປະມານຜະລິດ - ສະເພາະສຳລັບການນໍາໃຊ້ i.MX 8QM 29x29 A72 1.3GHz

Core: ARM Cortex A53, ARM Cortex A72, ARM Cortex M4F, GC7000XSVX

Application: Automotive, Infotainment

Memory Type: DDR4, LPDDR4

Data RAM Size: 2 x 256 kB

Data Bus Width: 32 bit/64 bit

Interface Type: Audio, CAN FD, DP, eDP, Ethernet, GPIO, HDMI, I2C, LVDS, MIPI-CSI, MIPI-DSI, PCIe, PWM, SATA, SPI, UART, USB 2.0, USB 3.0, USB OTG

Mounting Style: SMD/SMT

Number of Cores: 10 Core

Watchdog Timers: Watchdog Timer

Moisture Sensitive: Yes

L1 Cache Data Memory: 2 x 16 kB, 2 x 32 kB, 4 x 32 kB

Maximum Clock Frequency: 264 MHz, 650 MHz, 1.2 GHz, 1.296 GHz

Operating Supply Voltage: 1 V, 1.03 V, 1.1 V

L1 Cache Instruction Memory: 2 x 16 kB, 2 x 32 kB, 4 x 32 kB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

L2 Cache Instruction / Data Memory: 1 MB, 1 MB
