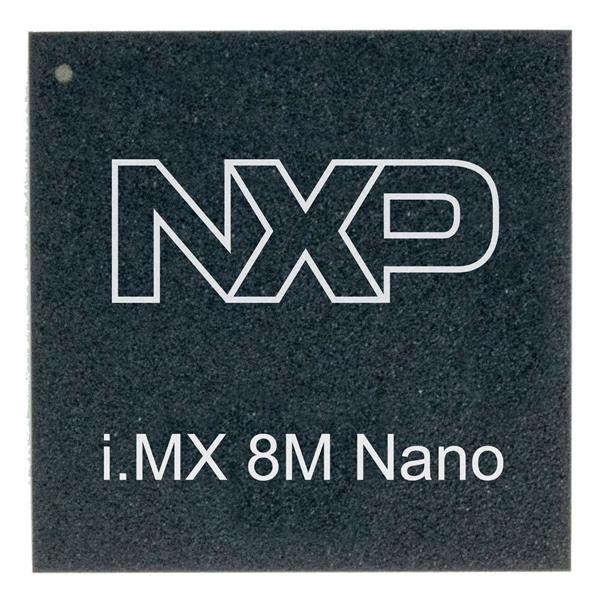

NXP MIMX8MN6CVTIZAA Processors - Application Specialized i.MX 8M Nano Arm Cortex

Core: ARM Cortex A53, ARM Cortex M7

Application: Consumer

Memory Type: DDR4, DDR3L, LPDDR4

Unit Weight: 402.771 mg

Data RAM Size: 32 kB, 512 kB

Data ROM Size: 256 kB

Data Bus Width: 64 bit

Interface Type: Ethernet, GPIO, I2C, SPI, UART, USB

Mounting Style: SMD/SMT

Number of Cores: 5 Core

Watchdog Timers: Watchdog Timer

Instruction Type: Floating Point

Processor Series: i.MX 8M Nano Quad

Moisture Sensitive: Yes

L1 Cache Data Memory: 32 kB

Maximum Clock Frequency: 750 MHz, 1.4 GHz

Operating Supply Voltage: 950 mV

Number of Timers/Counters: 6 Timer

L1 Cache Instruction Memory: 32 kB

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

L2 Cache Instruction / Data Memory: 512 kB
