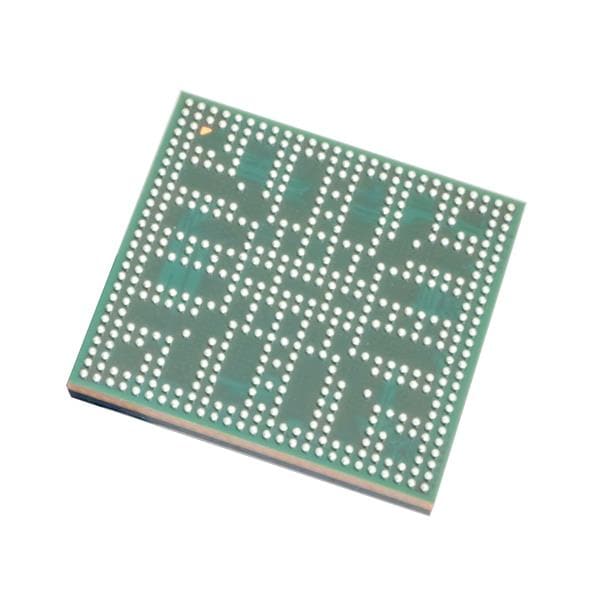

NXP MIMX8MM6DVTLZAA Processors - Application Specialized mScale 845S 14X14FCBGA

Core: ARM Cortex A53, ARM Cortex M4

Application: Consumer

Memory Type: DDR4, DDR3L, LPDDR4

Unit Weight: 588 mg

Data RAM Size: 32 kB, 256 kB

Data ROM Size: 256 kB

Data Bus Width: 64 bit

Interface Type: Audio, Ethernet, PCI-e, Serial, USB

Mounting Style: SMD/SMT

Number of Cores: 5 Core

Watchdog Timers: Watchdog Timer

Instruction Type: Floating Point

Processor Series: i.MX 8M Mini Quad

Moisture Sensitive: Yes

L1 Cache Data Memory: 16 kB, 32 kB

Maximum Clock Frequency: 400 MHz, 1.8 GHz

Operating Supply Voltage: 1 V

Number of Timers/Counters: 6 Timer

L1 Cache Instruction Memory: 16 kB, 32 kB

Maximum Operating Temperature: + 95 C

Minimum Operating Temperature: 0 C

L2 Cache Instruction / Data Memory: 512 kB
